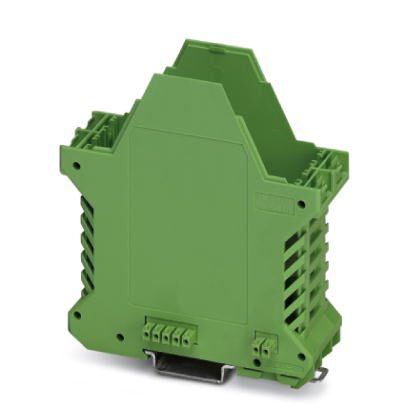

Phoenix Contact 2735551

Ambient conditions

• Ambient temperature (assembly)
  • -5 °C - 100 °C
• Ambient temperature (operation)
  • -40 °C - 105 °C (depending on power dissipation)
• Ambient temperature (storage/transport)
  • -40 °C - 55 °C
• Relative humidity (storage/transport)
  • 80 %

Degrees of protection provided by housings (IP code)

• Result, degree of protection, IP code
  • IP20
• Specification
  • IEC 60529:1989-11 + AMD 1:1999-11 + AMD 2:2013-08

Dimensions

• Depth [ d ]
  • 107.3 mm
• Depth from top edge of DIN rail [ d ]
  • 99.8 mm
• Depth from top edge of DIN rail to support point on upper part [ d ]
  • 68.5 mm
• Height [ h ]
  • 99 mm
• Width [ w ]
  • 35.2 mm

Environmental Product Compliance

• China RoHS
  • No hazardous substances above threshold values
  • Environmentally friendly use period: unlimited = EFUP-e

General information

• Note
  • Refer to the data sheet for the range in the download area.
  • Material of contact pads for bus connector, galvanic gold (hard gold)
• Type of note
  • Recommendation
  • Assembly instruction:

Item properties

• Brief article description
  • Mounting base housing
• Housing type
  • DIN rail housing
• Max. IP code to attain
  • IP20
• Mounting type
  • DIN rail mounting
• Order No.
  • 2735551
• Type
  • Lower housing part with metal foot catch, tall design
  • ME 35 UT/FE BUS/ 5+2 GN
• Ventilation openings present
  • yes

Material data

• Color (RAL)
  • green (6021)
• Flammability rating according to UL 94
  • V0
• Housing material
  • Polyamide

Mechanical strength/tumbling barrel

• Height of fall
  • 50 cm
• Number of drop cycles
  • 10
• Specification
  • IEC 60998-1:2002-12

Packaging information

• Denomination packing units
  • Pcs.
• Outer packaging type
  • Carton
• Pieces per package
  • 10
• Type of packaging
  • packed in cardboard

PCB data

• Mounting position
  • Vertical (horizontal DIN rail)
• Number of PCB holders
  • 2
• Type of PCB mount
  • Latching

Power dissipation, single housing at 20 °C

• Ambient temperature
  • 20 °C
• Mounting position
  • vertical
• Power dissipation
  • 7.9 W
• Reduction factor
  • 1

Power dissipation, single housing at 30 °C

• Ambient temperature
  • 30 °C
• Mounting position
  • vertical
• Power dissipation
  • 7.2 W
• Reduction factor
  • 0.91

Power dissipation, single housing at 40 °C

• Ambient temperature
  • 40 °C
• Mounting position
  • vertical
• Power dissipation
  • 6.4 W
• Reduction factor
  • 0.81

Power dissipation, single housing at 50 °C

• Ambient temperature
  • 50 °C
• Mounting position
  • vertical
• Power dissipation
  • 5.5 W
• Reduction factor
  • 0.7

Power dissipation, single housing at 60 °C

• Ambient temperature
  • 60 °C
• Mounting position
  • vertical
• Power dissipation
  • 4.5 W
• Reduction factor
  • 0.57

Shock

• Acceleration
  • 15g
• Number of shocks per direction
  • 3
• Pulse shape
  • Half-sine
• Shock duration
  • 11 ms
• Specification
  • IEC 60068-2-27:2008-02
• Test directions
  • X-, Y- and Z-axis (pos. and neg.)

Standards and regulations

• Connection in acc. with standard
  • CUL
• Flammability rating according to UL 94
  • V0

Test for assessing the risk of fire (glow wire)

• Specification
  • DIN EN 60695-2-11 (VDE 0471-2-11):2014-11
• Temperature
  • 850 °C
• Time of exposure
  • 30 s

Thermostability (Ball Thrust Test)

• Force
  • 20 N
• Specification
  • IEC 60695-10-2:2014-02
• Temperature
  • 125 °C
• Test duration
  • 1 h

Vibration test

• Acceleration
  • 2g (58.1 - 150 Hz)
• Amplitude
  • 0.15 mm (10 - 58.1 Hz)
• Frequency
  • 10 - 150 - 10 Hz
• Specification
  • IEC 60068-2-6:2007-12
• Sweep speed
  • 1 octave/min
• Test directions
  • X-, Y- and Z-axis
• Test duration per axis
  • 2.5 h
