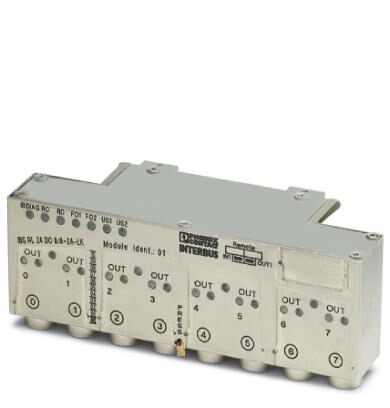

Phoenix Contact 2731034
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Digital output device for INTERBUS; fiber optic technology with 500 kbaud, 8 outputs (24 V DC, 2 A), actuator connection via 5-pos. M12 female connectors, rugged metal housing, IP67 protectionDistributed I/O device - IBS RL 24 DO 8/8-2A-LK - 2731034
Phoenix Contact 2731034 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Air pressure (operation)
- 860 hPa - 1080 hPa (up to 1500 m above sea level)
- Air pressure (storage/transport)
- 660 hPa - 1080 hPa (up to 3500 m above sea level)
- Ambient temperature (operation)
- -20 °C - 55 °C
- Ambient temperature (storage/transport)
- -25 °C - 70 °C
- Degree of protection
- IP65/IP67
- Note
- Seal unused slots/connections to ensure the degree of protection.
- Permissible humidity (operation)
- 100 %
- Permissible humidity (storage/transport)
- 95 % (non-condensing)
Digital outputs
- Behavior with inductive overload
- Output can be destroyed
- Behavior with overload
- Auto restart
- Connection technology
- 2, 3-wire
- Maximum output current per channel
- 2 A
- Maximum output current per module
- 8 A
- Nominal load, inductive
- 48 VA (1,2 H, 12 Ω)
- Nominal load, lamp
- 48 W
- Nominal load, ohmic
- 48 W
- Nominal output voltage
- 24 V DC
- Number of outputs
- 8
- Output current when switched off
- max. 100 µA
- Output name
- Digital outputs
- Output voltage
- 24 V DC
- Output voltage when switched off
- max. 1 V
- Protective circuit
- Electronic short-circuit/overload protection for each channel
- Reverse voltage resistance to short pulses
- Limited protection against reverse voltages up to 2 A DC
Dimensions
- Depth
- 71 mm
- Height
- 67 mm
- Note on dimensions
- With bus connectors and mounting plate
- Width
- 179 mm
Electrical isolation
- Test section
- Between bus logic and outputs 500 V AC 50 Hz 1 min.
Interfaces
- Connection method
- Optic fiber (polymer fiber 980/1000 µm)
- Designation
- INTERBUS
- Transmission physics
- FO
- Transmission speed
- 500 kbps
Power supply for module electronics
- Ripple
- Max 3.6 VSS within the permissible voltage range
- Supply current
- typ. 120 mA
- Supply voltage
- 24 V DC
- Supply voltage range
- 18.5 V DC - 32 V DC (including ripple)
Standards and Regulations
- Connection in acc. with standard
- CUL
