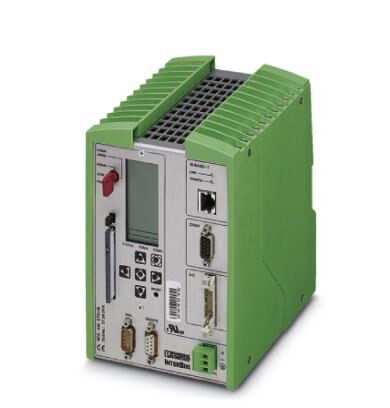

Phoenix Contact 2730190
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Remote Field Controller with 1x10/100 Ethernet, INTERBUS-Master, IP20 degree of protection, pluggable parameterization memory (MC FLASH)Controller - RFC 430 ETH-IB - 2730190
Phoenix Contact 2730190 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Air pressure (operation)
- 80 kPa - 108 kPa (up to 2000 m above sea level)
- Air pressure (storage/transport)
- 66 kPa - 108 kPa (up to 3000 m above sea level)
- Ambient temperature (operation)
- 0 °C - 55 °C (from 45°C only with fan module)
- Ambient temperature (storage/transport)
- -25 °C - 70 °C
- Degree of protection
- IP20
- Permissible humidity (operation)
- 5 % - 90 % (non-condensing)
- Permissible humidity (storage/transport)
- 5 % - 90 % (non-condensing)
- Shock
- 25g, Criterion 1, according to IEC 60068-2-27
- Vibration (operation)
- 1g, Criterion 1, according to IEC 60068-2-6
Control system
- Diagnostics tool
- DIAG+ from version 1.14
- Engineering tool
- PC WORX
- Programming languages supported
- Programming in acc. with IEC 61131-3
Data interfaces
- Connection method
- D-SUB-9 female connector
- D-SUB 9 plug
- RJ45 jack
- Interface
- Ethernet
- INTERBUS (Master)
- Parameterization/operation/diagnostics
- Serial (RS-232)
- Number
- 1
- Transmission speed
- 500 kBaud / 2 MBaud (can be switched)
- 10/100 Mbps
Dimensions
- Depth
- 190 mm
- Height
- 185 mm
- 210 mm
- Note on dimensions
- without fan module
- With fan module
- Width
- 124 mm
Direct I/Os
- Connection method
- Inline potential distributor
- Spring-cage connection
- Connection technology
- 2, 3, 4-wire
- Input name
- Digital inputs
- Maximum output current per channel
- 500 mA
- Number of inputs
- 5
- Number of outputs
- 3
- Output name
- Digital outputs
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
- REACh SVHC
- Lead 7439-92-1
Fieldbus function
- Amount of process data
- max. 8192 Bit (INTERBUS-Master)
- Number of devices with parameter channel
- max. 62
- Number of supported devices
- max. 512 (of which 254 are remote bus devices/bus segments)
- Program memory
- typ. 2 Mbyte (170 K instructions (IL))
IEC 61131 runtime system
- Engineering tool
- PC WORX
- Mass storage
- 4 Mbyte
- Number of control tasks
- 16
- Program memory
- typ. 2 Mbyte (170 K instructions (IL))
- Realtime clock
- Integrated (battery backup)
- Retentive mass storage
- 96 kByte (NVRAM)
Mechanical design
- Controller redundancy
- No
- Diagnostics display
- yes
- Note on weight specifications
- without fan module
- with fan module
- Safety function
- No
- Weight
- 1550 g
- 1700 g
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Power supply
- Power dissipation
- max. 20 W
- Power supply connection
- Screw terminal blocks, plug-in
- Residual ripple
- ±5 %
- Supply voltage
- 24 V DC
- Supply voltage range
- 19.2 V DC - 30 V DC (including ripple)
- Typical current consumption
- 1.5 A
Standards and Regulations
- Connection in acc. with standard
- CUL
- Shock
- 25g, Criterion 1, according to IEC 60068-2-27
- Vibration (operation)
- 1g, Criterion 1, according to IEC 60068-2-6
- Vibration (storage/transport)
- 1g, Criterion 1, according to IEC 60068-2-6
