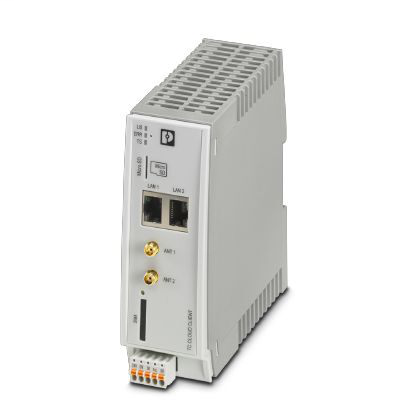

Phoenix Contact 2702886

Ambient conditions

• Ambient temperature (operation)
  • 0 °C - 60 °C
• Ambient temperature (storage/transport)
  • 0 °C - 60 °C
• Degree of protection
  • IP20
• Noise immunity
  • EN 61000-6-2
• Permissible humidity (operation)
  • 10 % - 95 % (non-condensing)
• Permissible humidity (storage/transport)
  • 10 % - 95 % (non-condensing)

Conformance/approvals

• Designation
  • Corrosive gas test
  • CE
• Identification
  • ISA-S71.04-1985 G3 Harsh Group A
  • CE-compliant

Digital inputs

• Description of the input
  • Digital input
• Number of inputs
  • 1
• Switching level "1" signal
  • 10 V DC - 30 V DC
• Voltage input signal
  • 10 V DC - 30 V DC

Digital outputs

• Current output signal
  • ≤ 50 mA (Not short-circuit proof)
• Number of outputs
  • 1
• Output name
  • Digital output
• Voltage output signal
  • 10 V DC - 30 V DC (depending on the operating voltage)

Dimensions

• Depth
  • 126 mm
• Height
  • 130 mm
• Width
  • 45 mm

Environmental Product Compliance

• China RoHS
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
  • Environmentally Friendly Use Period = 50 years
• REACh SVHC
  • Lead 7439-92-1

Function

• Management
  • Web-based management, SNMP
• Security functions
  • Supported 3DES, AES-128, -192, -256 ESP tunnel X.509v3, PSK MD5, SHA-1 RFC 3706
• Web-based management
  • yes

Interfaces

• Auxiliary protocols
  • ARP, DHCP, PING (ICMP), SNMP V1, SMTP
• Connection method
  • RJ45 socket, shielded
• Interface
  • Ethernet
• Interface 1
  • Ethernet interface, 10/100Base-T(X) in accordance with IEEE 802.3
• No. of ports
  • 2
• Protocols supported
  • TCP/IP, UDP/IP, FTP, HTTP
• Serial transmission speed
  • 10/100 Mbps, auto negotiation
• Transmission length
  • 100 m (shielded twisted pair)

Note

• Utilization restriction
  • EMC: class A product, see manufacturer's declaration in the download area

Power supply

• Conductor cross section AWG max.
  • 16
• Conductor cross section AWG min.
  • 26
• Conductor cross section flexible max.
  • 1.50 mm²
• Conductor cross section flexible min.
  • 0.14 mm²
• Conductor cross section solid max.
  • 1.50 mm²
• Conductor cross section solid min.
  • 0.14 mm²
• Max. current consumption
  • 1.7 A
• Supply voltage range
  • 10 V DC - 30 V DC (SELV, via pluggable Push-in terminal block)
• Typical current consumption
  • < 200 mA (24 V DC)

Standards and Regulations

• Comments
  • Criterion B
• Contact discharge
  • ± 6 kV (Test Level 3)
• Electromagnetic compatibility
  • Conformance with RED Directive 2014/53/EU
• Frequency range
  • 80 MHz - 3 GHz (Test Level 3)
  • 0.15 MHz - 80 MHz
• Noise immunity
  • EN 61000-6-2
• Signal
  • ± 1 kV (Data line, asymmetrical)
• Standards/regulations
  • EN 61000-4-4
  • EN 61000-4-3
  • EN 61000-4-5
  • EN 61000-4-6
  • EN 61000-4-2
• Test result
  • 5g, 10...150 Hz, 2.5 h, in XYZ direction
  • 15g
• Type of test
  • Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6
  • Shock in acc. with EN 60068-2-27/IEC 60068-2-27

Wireless interface

• Antenna
  • 50 Ω impedance SMA antenna socket
• Country support
  • Europe
• Data rate
  • ≤ 150 Mbps (LTE (DL))
  • ≤ 50 Mbps (LTE (UL))
• EDGE
  • Multislot Class 10
• Frequency
  • 1800 MHz (LTE B3)
  • 900 MHz (UMTS/HSPA B8)
  • 800 MHz (LTE B20)
  • 2100 MHz (LTE B1)
  • 1900 MHz (1 W (EGSM))
  • 900 MHz (LTE B8)
  • 850 MHz (LTE B5)
  • 850 MHz (2 W (EGSM))
  • 2100 MHz (UMTS/HSPA B1)
  • 1700 MHz (LTE B4)
  • 1900 MHz (UMTS/HSPA B2)
  • 850 MHz (UMTS/HSPA B5)
  • 1800 MHz (1 W (EGSM))
  • 900 MHz (2 W (EGSM))
  • 1900 MHz (LTE B2)
  • 2600 MHz (LTE B7)
• GPRS
  • CS1 - CS4
  • Class 12, Class B
• Interface description
  • GSM / GPRS / EDGE / UMTS / HSPA / LTE (FDD)
• LTE
  • CAT4
• SIM interface 1
  • 1.8 volt, 3 volt
• UMTS
  • HSPA 3GPP R9
