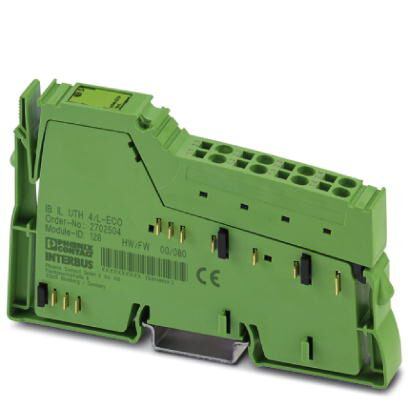

Phoenix Contact 2702504
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Inline ECO, Temperature measurement terminal, Analog UTH inputs: 4 (type L), connection method: 2-wire, transmission speed in the local bus: 500 kbps, degree of protection: IP20, including Inline connectorInline function terminal - IB IL UTH 4/L-ECO - 2702504
Phoenix Contact 2702504 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Air pressure (operation)
- 70 kPa - 106 kPa (up to 3000 m above sea level)
- Air pressure (storage/transport)
- 70 kPa - 106 kPa (up to 3000 m above sea level)
- Ambient temperature (operation)
- 0 °C - 55 °C
- Ambient temperature (storage/transport)
- -25 °C - 85 °C
- Degree of protection
- IP20
- Permissible humidity (operation)
- 10 % - 95 % (according to DIN EN 61131-2)
- Permissible humidity (storage/transport)
- 10 % - 95 % (according to DIN EN 61131-2)
Analog inputs
- A/D conversion time
- typ. 120 ms
- A/D converter resolution
- 24 bit
- Connection method
- Inline connector
- Connection technology
- 2-wire
- Description of the input
- Differential inputs
- Input name
- Analog UTH inputs
- Measured value representation
- 16 bits (15 bits + sign bit)
- Measuring principle
- Sigma/Delta process
- Note regarding the connection technology
- shielded
- Number of inputs
- 4 (type L)
- Process data update
- < 10 ms
- Sensor types that can be used (TC)
- L
- Type of protection
- Transient protection of inputs
Dimensions
- Depth
- 71.5 mm
- Height
- 119.8 mm
- Width
- 12.2 mm
Electrical isolation
- Test section
- Functional earth ground 500 V AC 50 Hz 1 min.
- Analog I/O 500 V AC 50 Hz 1 min.
- Bus logic (local bus, communications power) 500 V AC 50 Hz 1 min.
Environmental Product Compliance
- China RoHS
- No hazardous substances above threshold values
- Environmentally friendly use period: unlimited = EFUP-e
- REACh SVHC
- Lead 7439-92-1
Inline potentials
- Current consumption
- typ. 38 mA
- max. 39 mA
- max. 55 mA
- typ. 32 mA
- Designation
- Supply of analog modules (UANA)
- Communications power (UL)
- Power consumption
- typ. 1.05 W (total)
- Supply voltage
- 24 V DC (via voltage jumper)
- 7.5 V DC (via voltage jumper)
- Supply voltage range
- 19.2 V DC - 30 V DC (including all tolerances, including ripple)
Interfaces
- Connection method
- Inline data jumper
- Designation
- Inline local bus
- No. of channels
- 2
- Transmission speed
- 500 kbps
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Standards and Regulations
- Protection class
- III (IEC 61140, EN 61140, VDE 0140-1)
