Description

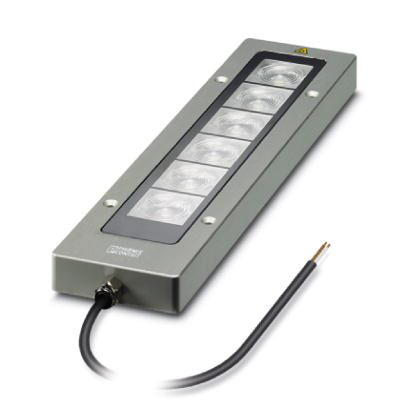

LED machine light, 24 V DC, emission angle 40 °, color temperature 6500 K, length 284 mm, Light housing: Anodized aluminum, Pane: Single-pane safety glass (ESG, thermally toughened float glass), resistant to coolants and lubricantsLED machine light - PLD M 280 W-40 284 - 2702491
Phoenix Contact 2702491 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Air pressure (operation)
- 69 kPa - 102 kPa
- Air pressure (storage/transport)
- 69 kPa - 102 kPa
- Ambient temperature (operation)
- 0 °C - 40 °C
- Ambient temperature (storage/transport)
- -20 °C - 50 °C
- Degree of protection
- IP67/IPX9
- Permissible humidity (operation)
- 95 %
- Permissible humidity (storage/transport)
- 95 % (non-condensing)
Dimensions
- Height
- 20 mm
- Length
- 284 mm
- Width
- 74 mm
Environmental Product Compliance
- China RoHS
- No hazardous substances above threshold values
- Environmentally friendly use period: unlimited = EFUP-e
Light properties
- Average illumination
- 347 lx (Distance of 1 m over 1 m² area)
- Color rendering index
- 65
- Color temperature / wavelength
- 6500 K ±10 %
- Emission angle
- 40 °
- Illumination
- max. 869 lx (Distance of 1 m)
- Light color
- daylight white
- Luminous flux
- approx. 460 lm (Net luminous flux)
- Number of LEDs
- 6
- Service life, lighting appliance
- 50,000 h (L70)
- Source of light type
- LED
Power supply for module electronics
- Cable length
- approx. 3 m
- Connection method
- open cable end
- Current consumption
- typ. 0.54 A (at 24 V DC)
- Power consumption
- approx. 13 W (at 24 V DC)
- Supply voltage
- 24 V DC
- Supply voltage range
- 22 V DC - 26 V DC
- Type of protection
- Surge protection
- Reverse polarity protection
Standards and Regulations
- Protection class
- III (IEC 61140, EN 61140, VDE 0140-1)
