Phoenix Contact 2702221
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

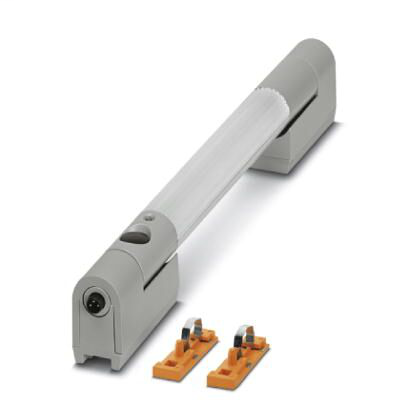

LED enclosure light, 24 V DC, color temperature 5000 K, length 250 mm, pivoting, can be switched in series, including mounting accessoriesLED enclosure light - PLD E 400 W 250 - 2702221
Phoenix Contact 2702221 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Air pressure (operation)
- 70 kPa - 106 kPa (up to 3000 m above sea level)
- Air pressure (storage/transport)
- 70 kPa - 106 kPa (up to 3000 m above sea level)
- Ambient temperature (operation)
- -25 °C - 60 °C
- Ambient temperature (storage/transport)
- -40 °C - 85 °C
- Degree of protection
- IP20
- Permissible humidity (operation)
- 5 % - 95 %
- Permissible humidity (storage/transport)
- 5 % - 95 %
Connection data
- Connection method
- M8 connector (snap-in)
Dimensions
- Height
- 38 mm
- Length
- 250 mm
- Width
- 23 mm
Environmental Product Compliance
- China RoHS
- Environmentally friendly use period: unlimited = EFUP-e
- No hazardous substances above threshold values
Light properties
- Color rendering index
- 75
- Color temperature / wavelength
- 5000 K
- Illumination
- max. 335 lx (50 cm distance)
- Light color
- Neutral white
- Luminous flux
- 140 lm (Net luminous flux)
- Number of LEDs
- 5
- Service life, lighting appliance
- 50,000 h (L70)
- Source of light type
- LED
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Power supply for module electronics
- Connection method
- M8 connector (snap-in)
- Number of positions
- 3
- Power consumption
- 1.5 W
- Supply voltage
- 24 V DC
- Supply voltage range
- 19.2 V DC - 30 V DC
Standards and Regulations
- Mechanical tests
- Continuous shock according to EN 60068-2-27/IEC 60068-2-27 10g
- Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g
- Shock in acc. with EN 60068-2-27/IEC 60068-2-27 25g
- Protection class
- III
