Phoenix Contact 2702177
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

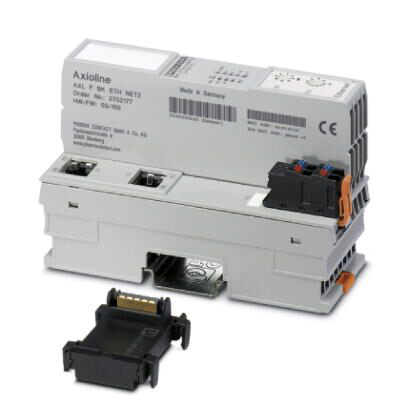

Axioline F, Bus coupler, Ethernet (2 networks), RJ45 jack, transmission speed in the local bus: 100 Mbps, degree of protection: IP20, including bus base module and Axioline F connectorBus coupler - AXL F BK ETH NET2 - 2702177
Phoenix Contact 2702177 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Air pressure (operation)
- 70 kPa - 106 kPa (up to 3000 m above sea level)
- Air pressure (storage/transport)
- 70 kPa - 106 kPa (up to 3000 m above sea level)
- Ambient temperature (operation)
- -25 °C - 55 °C (Mounting position: any)
- -25 °C - 60 °C (Mounting position: wall mounting on horizontal DIN rail)
- Ambient temperature (storage/transport)
- -40 °C - 85 °C
- Degree of protection
- IP20
- Permissible humidity (operation)
- 5 % - 95 % (non-condensing)
- Permissible humidity (storage/transport)
- 5 % - 95 % (non-condensing)
Axioline potentials
- Current consumption
- max. 583 mA (with 2 A at UBus for the I/Os and UL = 24 V)
- Designation
- Communications power UL feed-in (the supply of the Axioline F local bus UBus is generated from UL)
- Axioline F local bus supply (UBus)
- Power consumption
- max. 14 W (with 2 A load at UBus for the I/Os)
- Power supply unit
- 2 A
- Protective circuit
- Polarity reversal protection of the supply voltage electronic
- Surge protection of the supply voltage electronic
- Supply voltage
- 5 V DC (via bus base module)
- 24 V DC
- Supply voltage range
- 19.2 V DC - 30 V DC (including all tolerances, including ripple)
Connection data
- Conductor cross section AWG max.
- 16
- Conductor cross section AWG min.
- 24
- Conductor cross section flexible max.
- 1.5 mm²
- Conductor cross section flexible min.
- 0.2 mm²
- Conductor cross section solid max.
- 1.5 mm²
- Conductor cross section solid min.
- 0.2 mm²
- Connection method
- Push-in connection
- Designation
- Axioline F connector
- Stripping length
- 8 mm
Dimensions
- Depth
- 74 mm
- Height
- 126.1 mm
- Note on dimensions
- The depth is valid when a TH 35-7,5 DIN rail is used (according to EN 60715).
- Width
- 45 mm
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- REACh SVHC
- Lead 7439-92-1
Interfaces
- Connection method
- Bus base module
- Micro USB type B
- RJ45 jack
- Designation
- Ethernet (2 networks)
- Service
- Axioline F local bus
- No. of channels
- 2
- Note on the connection method
- Auto negotiation and autocrossing
- Transmission physics
- Ethernet in RJ45 twisted pair
- Transmission speed
- 100 Mbps
- 10/100 Mbps (Half or full duplex mode (automatic detection, can be adjusted manually))
Standards and Regulations
- Mechanical tests
- Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g
- Continuous shock according to EN 60068-2-27/IEC 60068-2-27 10g
- Shock in acc. with EN 60068-2-27/IEC 60068-2-27 30g
- Protection class
- III (IEC 61140, EN 61140, VDE 0140-1)
