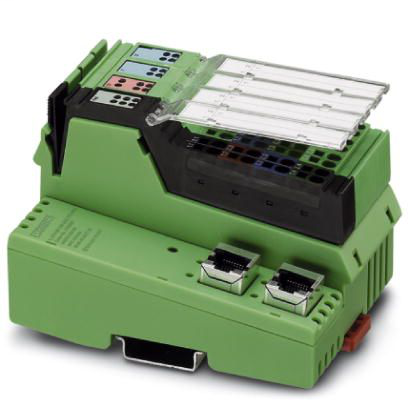

Phoenix Contact 2702131

Ambient conditions

• Air pressure (operation)
  • 70 kPa - 106 kPa (up to 3000 m above sea level)
• Air pressure (storage/transport)
  • 70 kPa - 106 kPa (up to 3000 m above sea level)
• Ambient temperature (operation)
  • -40 °C - 70 °C (Extended, see section “Tested successfully: use under extreme ambient conditions” in the data sheet.)
  • -25 °C - 60 °C (Standard)
• Ambient temperature (storage/transport)
  • -40 °C - 85 °C
• Degree of protection
  • IP20
• Permissible humidity (operation)
  • 10 % - 95 % (non-condensing)
• Permissible humidity (storage/transport)
  • 10 % - 95 % (non-condensing)

Connection data

• Conductor cross section AWG max.
  • 16
• Conductor cross section AWG min.
  • 28
• Conductor cross section flexible max.
  • 1.5 mm²
• Conductor cross section flexible min.
  • 0.08 mm²
• Conductor cross section solid max.
  • 1.5 mm²
• Conductor cross section solid min.
  • 0.08 mm²
• Connection method
  • Spring-cage connection
• Designation
  • Inline connector
• Stripping length
  • 8 mm

Digital inputs

• Connection method
  • Inline connector
• Connection technology
  • 3-wire
• Delay at signal change from 0 to 1
  • 1.2 ms
• Delay at signal change from 1 to 0
  • 1.2 ms
• Description of the input
  • EN 61131-2 type 1
• Input name
  • Digital inputs
• Input voltage
  • 24 V DC
• Input voltage range "0" signal
  • -30 V DC - 5 V DC
• Input voltage range "1" signal
  • 15 V DC - 30 V DC
• Nominal input current at U_IN
  • typ. 3 mA
• Number of inputs
  • 8
• Type of protection
  • Reverse polarity protection
• Typical input current per channel
  • typ. 3 mA
• Typical response time
  • approx. 500 µs

Digital outputs

• Connection method
  • Inline connector
• Connection technology
  • 3-wire
• Maximum output current per channel
  • 500 mA
• Maximum output current per module
  • 2 A
• Maximum output current per module / terminal block
  • 2 A
• Nominal load, inductive
  • 12 VA (1.2 H, 48 Ω)
• Nominal load, lamp
  • 12 W
• Nominal load, ohmic
  • 12 W
• Nominal output voltage
  • 24 V DC
• Number of outputs
  • 4
• Output name
  • Digital outputs
• Output voltage
  • 24 V DC -1 V (At nominal current)
• Type of protection
  • Short-circuit and overload protection

Dimensions

• Depth
  • 71.5 mm
• Height
  • 119.8 mm
• Note on dimensions
  • Specfications with connectors
• Width
  • 80 mm

Environmental Product Compliance

• China RoHS
  • No hazardous substances above threshold values
  • Environmentally friendly use period: unlimited = EFUP-e

Inline potentials

• Current consumption
  • max. 8 A DC
  • 6 mA (Without connected peripherals)
  • 3 mA (without sensors)
  • max. 8 A DC
  • max. 0.98 A
  • 80 mA (without connected I/O terminal blocks)
• Designation
  • Bus coupler supply UBC; Communications power UL (7.5 V) and the analog supply UANA (24 V) are generated from the bus coupler supply.
  • Main circuit supply (UM)
  • Supply of analog modules (UANA)
  • Communications power (UL)
  • Segment circuit supply (US)
• Power consumption
  • typ. 3 W (entire device)
• Power supply unit
  • max. 8 A DC (sum of UM + US)
  • max. 0.5 A DC
  • max. 8 A DC (sum of UM + US)
  • max. 0.8 A DC
• Supply voltage
  • 24 V DC (via Inline connector)
  • 24 V DC (via Inline connector)
  • 7.5 V DC
  • 24 V DC (via Inline connector)
  • 24 V DC
• Supply voltage range
  • 19.2 V DC - 30 V DC (including all tolerances, including ripple)
  • 19.2 V DC - 30 V DC (including all tolerances, including ripple)
  • 19.2 V DC - 30 V DC (including all tolerances, including ripple)
  • 19.2 V DC - 30 V DC (including all tolerances, including ripple)
• Type of protection
  • Short-circuit protection of the communications power
  • Short-circuit protection of the analog supply

Note

• Utilization restriction
  • EMC: class A product, see manufacturer's declaration in the download area

Standards and Regulations

• Mechanical tests
  • Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g
  • Shock in acc. with EN 60068-2-27/IEC 60068-2-27 Operation: 25g, 11 ms duration, semi-sinusoidal shock impulse
• Protection class
  • III, IEC 61140, EN 61140, VDE 0140-1

System limits of the bus coupler

• Amount of process data
  • max. 512 Byte (per station)
• Designation
  • System limits of the bus coupler
• Number of devices with parameter channel
  • max. 8
• Number of local bus devices that can be connected
  • max. 61 (on board I/Os are two devices)
• Number of supported branch terminals with remote bus branch
  • 0
• Number of supported devices
  • max. 63 (per station)
