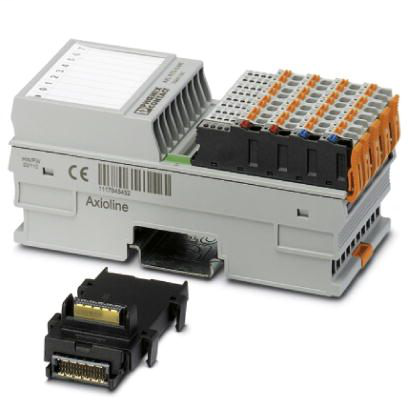

Phoenix Contact 2702120

Ambient conditions

• Air pressure (operation)
  • 70 kPa - 106 kPa (up to 3000 m above sea level)
• Air pressure (storage/transport)
  • 70 kPa - 106 kPa (up to 3000 m above sea level)
• Ambient temperature (operation)
  • -25 °C - 60 °C
• Ambient temperature (storage/transport)
  • -40 °C - 85 °C
• Degree of protection
  • IP20
• Permissible humidity (operation)
  • 5 % - 95 % (non-condensing)
• Permissible humidity (storage/transport)
  • 5 % - 95 % (non-condensing)

Analog inputs

• Connection method
  • Push-in connection
• Connection technology
  • 2, 4-wire (shielded)
• Data formats
  • IB IL, S7-compatible
• Description of the input
  • Inputs for resistive temperature sensors
• Input filter time
  • 8 ms
• Input name
  • Analog inputs
• Linear resistance measuring range
  • 0 Ω - 500 Ω
• Measured value representation
  • 16 bits (15 bits + sign bit)
• Nominal value of the current sources
  • 1 mA (Pt 100, Ni 100, RLin 500 Ω; pulse current, the specification is valid during the sampling phase)
• Number of inputs
  • 8 (for resistance temperature detectors)
• Resolution A/D
  • 24 bit
• Sensor types (RTD) that can be used
  • Pt, Ni, Cu sensors
• Type of protection
  • Short-circuit protection, overload protection of the inputs
  • Transient protection of inputs
  • Transient protection of sensor supplies

Axioline potentials

• Current consumption
  • max. 25 mA
  • max. 180 mA
  • typ. 115 mA
  • typ. 15 mA
• Designation
  • Supply for analog modules (UA)
  • Axioline F local bus supply (UBus)
• Power consumption
  • max. 1.5 W (at UBus and UA)
  • max. 0.9 W
  • typ. 0.94 W (at UBus and UA)
  • max. 0.6 W
  • typ. 0.58 W
• Supply voltage
  • 5 V DC (via bus base module)
  • 24 V DC
• Supply voltage range
  • 19.2 V DC - 30 V DC (including all tolerances, including ripple)
• Type of protection
  • Surge protection of the supply voltage
  • Transient protection
  • Polarity reversal protection of the supply voltage

Connection data

• Conductor cross section AWG max.
  • 16
• Conductor cross section AWG min.
  • 24
• Conductor cross section flexible max.
  • 1.5 mm²
• Conductor cross section flexible min.
  • 0.2 mm²
• Conductor cross section solid max.
  • 1.5 mm²
• Conductor cross section solid min.
  • 0.2 mm²
• Connection method
  • Push-in connection
• Designation
  • Axioline F connector
• Note on the connection method
  • Please observe the information provided on conductor cross sections in the “Axioline F: system and installation” user manual.
• Stripping length
  • 8 mm

Dimensions

• Caption
  • Dimensional drawing
• Depth
  • 54 mm
• Height
  • 126.1 mm
• Note on dimensions
  • The depth is valid when a TH 35-7,5 DIN rail is used (according to EN 60715).
• Width
  • 53.6 mm

Electrical isolation

• Test section
  • 5 V communications power (logic), 24 V supply (I/O) 500 V AC 50 Hz 1 min.
  • 5 V supply (logic)/functional earth ground 500 V AC 50 Hz 1 min.
  • 24 V supply (I/O) / functional earth ground 500 V AC 50 Hz 1 min.

Environmental Product Compliance

• China RoHS
  • Environmentally friendly use period: unlimited = EFUP-e
  • No hazardous substances above threshold values

Interfaces

• Connection method
  • Bus base module
• Designation
  • Axioline F local bus
• No. of channels
  • 2
• Transmission speed
  • 100 Mbps

Standards and Regulations

• Mechanical tests
  • Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g
  • Continuous shock according to EN 60068-2-27/IEC 60068-2-27 10g
  • Shock in acc. with EN 60068-2-27/IEC 60068-2-27 30g
• Protection class
  • III, IEC 61140, EN 61140, VDE 0140-1
