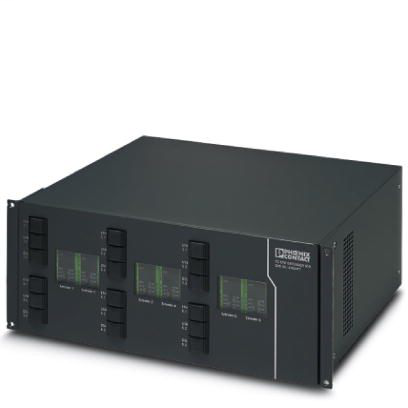

Phoenix Contact 2702077
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
19" Ethernet communication unit for networking systems and stations via SHDSL technology. Data rates of up to 30 Mbps, distances of up to 20 km on in-house copper cables via line, star, and ring structures. Diagnostics via LEDs or software.Modem 2702077
Phoenix Contact 2702077 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- 5 °C - 35 °C (Cabinet temperature)
- Ambient temperature (storage/transport)
- 0 °C - 50 °C
- Degree of protection
- IP20
- Noise immunity
- EN 61000-6-2
- Permissible humidity (operation)
- 10 % - 95 % (non-condensing)
Dimensions
- Caption
- Dimensional drawing
- Depth
- 330 mm
- Height
- 178 mm
- Width
- 438 mm
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50
- For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
- REACh SVHC
- Lead 7439-92-1
Function
- Management
- Plug and Play, diagnostics via PSI-CONF software or web-based management (only with managed Ethernet extenders)
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Power supply
- Nominal supply voltage
- 230 V AC (50 Hz - 60 Hz)
- Supply voltage range
- 100 V AC - 240 V AC
- Typical current consumption
- < 300 mA (220 V AC)
Protective circuit
- Capacity (line-earth)
- 7 pF
- Capacity (line-line)
- 55 pF
- Cut-off frequency fg (3 dB), sym. in 100 Ohm system
- 25 MHz
- IEC test classification
- C1
- B2
- D1
- C2
- C3
- Impulse durability (line-earth)
- D1 - 1 kA
- C2 - 10 kV/5 kA
- B2 - 4 kV/100 A
- C1 - 1 kV/500 A
- Impulse durability (line-line)
- C2 - 10 kV/5 kA
- C1 - 1 kV/500 A
- B2 - 4 kV/100 A
- Input attenuation aE, sym.
- typ. 0.3 dB (≤ 2,8 MHz / 100 Ω)
- typ. 3 dB (≤ 25 MHz / 100 Ω)
- Maximum continuous voltage UC
- 185 V DC
- 130 V AC
- Nominal discharge current In (8/20) µs (line-earth)
- ≤ 5 kA
- Nominal discharge current In (8/20) µs (line-line)
- ≤ 5 kA
- Nominal pulse current Ian (10/1000) µs (line-earth)
- 100 A
- Nominal pulse current Ian (10/1000) µs (line-line)
- 100 A
- Nominal pulse current Ian (10/700) µs (line-earth)
- 150 A
- Nominal pulse current Ian (10/700) µs (line-line)
- 150 A
- Operating effective current IC at UC
- ≤ 6 µA
- Pulse discharge current Iimp (10/350) µs
- 2.5 kA (Number of pulses category D1)
- Rated current
- ≤ 380 mA (25 °C)
- Residual current IPE
- ≤ 4 µA
- Resistance in series
- 3.3 Ω 20 %
- Response time tA (line-earth)
- ≤ 100 ns
- Response time tA (line-line)
- ≤ 100 ns
- Surge protection fault message
- none
- Total discharge current Itotal (8/20) µs
- 10 kA
- VDE requirement class
- C1
- C2
- D1
- B2
- C3
- Voltage protection level Up (line-earth)
- ≤ 300 V (C3 - 100 A)
- ≤ 790 V (C2 - 5 kA)
- ≤ 580 V (B2 - 100 A)
- ≤ 580 V (C1 - 500 A)
- Voltage protection level Up (line-line)
- ≤ 410 V (C2 - 5 kA)
- ≤ 250 V (C3 - 100 A)
- ≤ 250 V (C1 - 500 A)
- 250 V (B2 - 100 A)
Serial interface
- Connection method
- Socket M8
- RJ45 socket, shielded
- USB Type B
- Interface
- Ethernet
- Interface 1
- Ethernet interface, 10/100Base-T(X) in acc. with IEEE 802.3u
- Interface 2
- SHDSL interface according to ITU-T G.991.2.bis
- Interface 3
- USB 2.0
- No. of ports
- 12 (2-wire operation)
- 4
- Protocols supported
- Transparent protocol for IPv4 and IPv6
- Serial transmission speed
- 2-wire operation: 32 kbps - 15.3 Mbps
- 4-wire operation: 64 kbps - 30 Mbps
- 10/100 Mbps, auto negotiation
- Transmission length
- < 5 m (only for configuration and diagnostics)
- < 20 km (Depending on data rate and cable cross section)
- < 100 m (shielded twisted pair)
Standards and Regulations
- Conformance
- CE-compliant
- Electromagnetic compatibility
- Conformance with EMC Directive 2014/30/EU
- Noise immunity
- EN 61000-6-2
- Vibration (operation)
- DIN EN 60068-2-6
