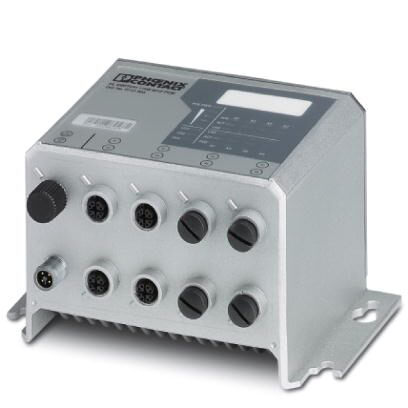

Phoenix Contact 2701883
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
PoE+ Ethernet switch, 8 Ethernet ports in M12 format, automatic detection of the data transmission speed of 10/100/1000 Mbps, jumbo frames up to 9600 bytes, coupling of network segments with different transmission speeds, autocrossing function, degree of protection IP67Industrial Ethernet Switch - FL SWITCH 1708 M12 POE - 2701883
Phoenix Contact 2701883 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Air pressure (operation)
- 86 kPa - 108 kPa (2000 m above sea level)
- Air pressure (storage/transport)
- 66 kPa - 108 kPa (3500 m above sea level)
- Ambient temperature (operation)
- -40 °C - 70 °C (non-condensing)
- Ambient temperature (storage/transport)
- -40 °C - 70 °C
- Degree of protection
- IP65
- IP66
- IP67
- Permissible humidity (operation)
- 10 % - 95 %
- Permissible humidity (storage/transport)
- 10 % - 95 % (non-condensing)
Dimensions
- Depth
- 100 mm
- Height
- 112 mm
- Width
- 176 mm
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
- REACh SVHC
- Lead 7439-92-1
Function
- Additional functions
- Autonegotiation
- Basic functions
- Store-and-forward switch, 10/100/1000 Mbps, auto negotiation, complies with standard IEEE 802.3, 4 priority classes according to IEEE 802.1p, PoE according to IEEE 802.3at/802.3af, jumbo frames up to 9720 bytes
- PROFINET conformance class
- Conformance-Class A
- Signal contact control current
- 100 mA (24 V DC)
- Signal contact control voltage
- 24 V DC (typical)
- Status and diagnostic indicators
- LEDs: US1, US2 (power supply), Fail (alarm contact), 3 LEDs per Ethernet port (Link, Activity, and PoE Status), and PoE performance
Interfaces
- Connection method
- M12 connector, 8-pos.
- M12 connector, (A-coded)
- Interface
- Ethernet (PoE)
- Signal contact
- No. of ports
- 8 (RJ45 POE ports)
- Note on the connection method
- X-coded
- Signal LEDs
- Data receive, link status
- Transmission length
- 100 m (per segment)
- Transmission physics
- Copper
- Transmission speed
- 10/100/1000 Mbps
Network expansion parameters
- Cascading depth
- Network, linear, and star structure: any
- Maximum conductor length (twisted pair)
- 100 m
Standards and Regulations
- Electromagnetic compatibility
- Conformance with EMC Directive 2014/30/EU
- Free from substances that could impair the application of coating
- Yes
- Noise emission
- EN 55022 / Class B
- Noise immunity
- EN 61000-4-2
- Test result
- 30g, half-sine shock pulse
- 10g, 16 ms, 1000 shocks, in all space directions
- Type of test
- Shock in acc. with EN 60068-2-27/IEC 60068-2-27
Supply voltage
- Max. current consumption
- 12 A (Maximum, nominal load)
- Residual ripple
- 3.6 VPP
- Supply voltage
- 24 V DC (M12 connector)
- Supply voltage range
- 18.7 V DC - 30.5 V DC
- Typical current consumption
- 300 mA (at US = 24 V DC)
