Phoenix Contact 2701864
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

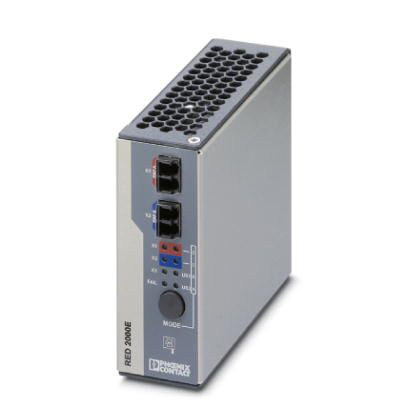

Ethernet redundancy module for redundant networks with the redundancy protocol PRP.Redundancy module - FL RED 2001E PRP 2LC - 2701864
Phoenix Contact 2701864 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Air pressure (operation)
- 70 kPa - 106 kPa (3000 m above sea level)
- Air pressure (storage/transport)
- 70 kPa - 106 kPa (3000 m above sea level)
- Ambient temperature (operation)
- -40 °C - 70 °C
- Ambient temperature (storage/transport)
- -45 °C - 85 °C
- Degree of protection
- IP20
- Permissible humidity (operation)
- 10 % - 95 % (non-condensing)
- Permissible humidity (storage/transport)
- 10 % - 95 % (non-condensing)
Connection data
- Conductor cross section AWG max.
- 16
- Conductor cross section AWG min.
- 24
- Conductor cross section flexible max.
- 1.5 mm²
- Conductor cross section flexible min.
- 0.2 mm²
- Conductor cross section solid max.
- 1.5 mm²
- Conductor cross section solid min.
- 0.2 mm²
Dimensions
- Depth
- 109 mm
- Height
- 100 mm
- Width
- 40 mm
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
- REACh SVHC
- Lead 7439-92-1
Function
- Basic functions
- Ethernet redundancy module for the Parallel Redundancy Protocol
- Redundancy
- PRP (Parallel Redundancy Protocol)
- Status and diagnostic indicators
- LEDs: US₁, US₂ (redundant voltage supply), link and activity per port
Interfaces
- Data flow control/protocols
- IEC 61850-3, IEEE 1613
- Interface
- Ethernet FO
- Ethernet (RJ45)
- No. of ports
- 1 (RJ45 port)
- 2 (LC multi-mode)
- Note on the connection method
- Auto negotiation and autocrossing
- Transmission length
- 2 km (per segment)
- 100 m (per segment)
- Transmission physics
- Copper
- multi-mode fiberglass
- Transmission speed
- 100 Mbps (full duplex)
- 10/100 Mbps
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Standards and Regulations
- Electromagnetic compatibility
- Conformance with EMC Directive 2014/30/EU
- Noise emission
- EN 61000-6-4
- Noise immunity
- IEC 61850-3, IEEE 1613, EN 61000-6-2: 2005
Supply voltage
- Residual ripple
- 3.6 VPP (within the permitted voltage range)
- Supply voltage
- 24 V DC (redundant)
- 48 V DC (redundant)
- Supply voltage range
- 18 V DC - 58 V DC
- Typical current consumption
- 250 mA (at US = 24 V DC)
