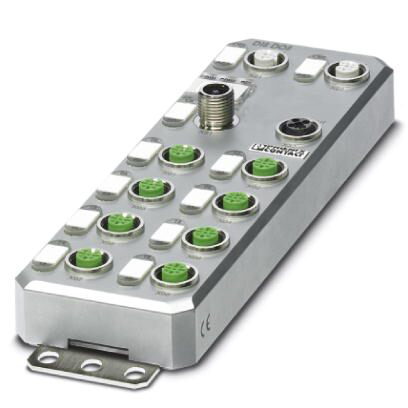

Phoenix Contact 2701548

Ambient conditions

• Air pressure (operation)
  • 70 kPa - 106 kPa (up to 3000 m above sea level)
• Air pressure (storage/transport)
  • 70 kPa - 106 kPa (up to 3000 m above sea level)
• Ambient temperature (operation)
  • -25 °C - 60 °C
• Ambient temperature (storage/transport)
  • -25 °C - 85 °C
• Degree of protection
  • IP65/IP67
• Permissible humidity (operation)
  • 5 % - 95 %
• Permissible humidity (storage/transport)
  • 5 % - 95 %

Digital inputs

• Connection method
  • M12 connector, double occupancy
• Connection technology
  • 4-wire
• Description of the input
  • EN 61131-2 types 1 and 3
• Input filter time
  • < 1000 µs
• Input name
  • Digital inputs
• Input voltage range "0" signal
  • 0 V - 5 V DC
• Input voltage range "1" signal
  • 11 V DC - 30 V DC
• Nominal input current at UIN
  • typ. 3 mA
• Nominal input voltage UIN
  • 24 V DC
• Number of inputs
  • 8
• Protective circuit
  • Overload protection, short-circuit protection of sensor supply

Digital outputs

• Behavior with overload
  • Auto restart
• Connection method
  • M12 connector, double occupancy
• Connection technology
  • 3-wire
• Maximum output current per channel
  • 500 mA
• Nominal load, inductive
  • 12 VA (1.2 H, 48 Ω, with nominal voltage)
• Nominal load, ohmic
  • 12 W (48 Ω, with nominal voltage)
• Nominal output voltage
  • 24 V DC (from voltage UA)
• Number of outputs
  • 8
• Output current when switched off
  • max. 20 µA
• Output name
  • Digital outputs
• Output voltage
  • 24 V DC
• Output voltage when switched off
  • max. 1 V
• Protective circuit
  • Overload protection, short-circuit protection of outputs yes
• Reverse voltage resistance to short pulses
  • Reverse voltage proof
• Switching frequency
  • max. 5500 per second (with at least 50 mA load current)

Dimensions

• Depth
  • 38 mm
• Drill hole spacing
  • 198.5 mm
• Height
  • 185 mm
• Note on dimensions
  • The height is 194.5 mm including the mounting plate. With fixing clips pulled out, the height is 212 mm. The depth is 38 mm including the mounting plate (30.5 mm without the mounting plate).
• Width
  • 60 mm

Electrical isolation

• Test section
  • 24 V supply (communications power and sensor supply, digital inputs)/FE 500 V AC 50 Hz 1 min.
  • Bus connection (Ethernet 1)/bus connection (Ethernet 2) 500 V AC 50 Hz 1 min.
  • Bus connection (Ethernet 1)/FE 500 V AC 50 Hz 1 min.
  • 24 V supply (actuator supply, digital outputs)/24 V supply (communications power and sensor supply, digital inputs) 500 V AC 50 Hz 1 min.
  • 24 V supply (communications power and sensor supply, digital inputs)/bus connection (Ethernet 2) 500 V AC 50 Hz 1 min.
  • Bus connection (Ethernet 2)/FE 500 V AC 50 Hz 1 min.
  • 24 V supply (actuator supply, digital outputs)/bus connection (Ethernet 1) 500 V AC 50 Hz 1 min.
  • 24 V supply (communications power and sensor supply, digital inputs)/bus connection (Ethernet 1) 500 V AC 50 Hz 1 min.
  • 24 V supply (actuator supply, digital outputs)/FE 500 V AC 50 Hz 1 min.
  • 24 V supply (actuator supply, digital outputs)/bus connection (Ethernet 2) 500 V AC 50 Hz 1 min.

Environmental Product Compliance

• China RoHS
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
  • Environmentally Friendly Use Period = 25;
• REACh SVHC
  • Lead 7439-92-1

Interfaces

• Connection method
  • M12 fast connection technology
• Designation
  • Sercos
• Designation connection point
  • Copper cable
• No. of channels
  • 2
• Note on the connection method
  • D-coded
• Number of positions
  • 4
• Transmission speed
  • 100 Mbps (with auto negotiation)

Note

• Utilization restriction
  • EMC: class A product, see manufacturer's declaration in the download area

Standards and Regulations

• Mechanical tests
  • Shock in acc. with EN 60068-2-27/IEC 60068-2-27 30g, 11 ms period, half-sine shock pulse
  • Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g
  • Continuous shock according to EN 60068-2-27/IEC 60068-2-27 10g
• Protection class
  • III (IEC 61140, EN 61140, VDE 0140-1)

Supply

• Connection method
  • M12 connector (T-coded)
• Current consumption
  • typ. 30 mA ±15 % (at 24 V DC)
  • typ. 190 mA ±15 % (at 24 V DC)
• Designation
  • Module electronics and sensors (US)
  • Actuators (UA)
• Number of positions
  • 4
• Supply voltage
  • 24 V DC
• Supply voltage range
  • 18 V DC - 31.2 V DC (including all tolerances, including ripple)

System limits of the bus coupler

• Designation
  • Sercos
• Device profile
  • FSP_IO
• Equipment type
  • Sercos slave
• Protocols supported
  • TFTP
  • HTTP
  • FTP
• Specification
  • Sercos specification 1.1.2
• System-specific protocols
  • Sercos protocols S/IP
  • Sercos protocols Sercos
