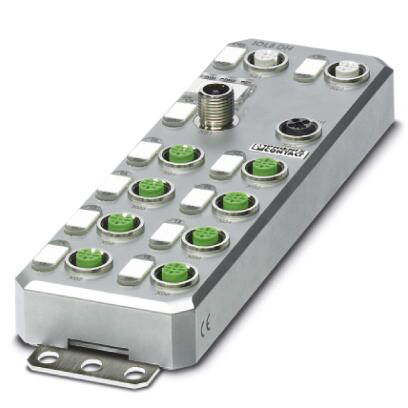

Phoenix Contact 2701531

Ambient conditions

• Air pressure (operation)
  • 70 kPa - 106 kPa (up to 3000 m above sea level)
• Air pressure (storage/transport)
  • 70 kPa - 106 kPa (up to 3000 m above sea level)
• Ambient temperature (operation)
  • -25 °C - 60 °C
• Ambient temperature (storage/transport)
  • -25 °C - 85 °C
• Degree of protection
  • IP65/IP67
• Permissible humidity (operation)
  • 5 % - 95 %
• Permissible humidity (storage/transport)
  • 5 % - 95 %

Digital inputs

• Connection method
  • M12 connector, X01 - X04 have double occupancy
• Connection technology
  • 3-wire
• Description of the input
  • IEC 61131-2 type 1
  • IO-Link ports in digital input (DI) mode
• Input filter time
  • < 1000 µs
• Input frequency
  • 0.5 kHz
• Input name
  • Digital inputs at pin 2 for type A ports
• Input voltage range "0" signal
  • -0.3 V DC - 5 V DC
• Input voltage range "1" signal
  • 15 V DC - 30 V DC
• Nominal input current
  • typ. 3 mA
• Nominal input current at UIN
  • typ. 3 mA
• Nominal input voltage UIN
  • 24 V DC
• Number of inputs
  • 4
  • max. 8 (EN 61131-2 type 1)
• Protective circuit
  • Overload protection, short-circuit protection of sensor supply
• Sensor current per channel
  • max. 200 mA (from L+/L-)
• Total sensor current
  • max. 1.6 A (from L+/L-)
• Type of protection
  • Overload protection
  • Short-circuit protection for the sensor supply

Digital outputs

• Behavior with overload
  • Shutdown with automatic restart
• Connection method
  • M12 connector, X01 - X04 have double occupancy
• Connection technology
  • 3-wire
• Limitation of the voltage induced on circuit interruption
  • -15 V DC
• Maximum output current per channel
  • 150 mA
• Maximum output current per device
  • 1.2 A
• Nominal load, inductive
  • 3.6 VA (0.8 H, 160 Ω, at nominal load)
• Nominal load, ohmic
  • 3.6 W (160 Ω, at nominal load)
• Nominal output voltage
  • 24 V DC
• Number of outputs
  • max. 8
• Output current when switched off
  • max. 300 µA
• Output description
  • IO-Link ports in digital output (DO) mode
• Output voltage when switched off
  • max. 1 V
• Signal delay
  • max. 150 µs (when switched on)
  • max. 200 µs (when switched off)
• Switching rate
  • 1 per second, maximum (at nominal inductive load)
• Type of protection
  • Short-circuit protection
  • Overload protection

Dimensions

• Depth
  • 38 mm
• Drill hole spacing
  • 198.5 mm
• Height
  • 185 mm
• Note on dimensions
  • The height is 194.5 mm including the mounting plate. With fixing clips pulled out, the height is 212 mm. The depth is 38 mm including the mounting plate (30.5 mm without the mounting plate).
• Width
  • 60 mm

Electrical isolation

• Test section
  • 24 V supply (communications power and sensor supply, IO-Link ports)/FE 500 V AC 50 Hz 1 min.
  • 24 V supply (actuator supply)/24 V supply (communications power and sensor supply, IO-Link ports) 500 V AC 50 Hz 1 min.
  • Bus connection (Ethernet 1)/bus connection (Ethernet 2) 500 V AC 50 Hz 1 min.
  • 24 V supply (actuator supply)/FE 500 V AC 50 Hz 1 min.
  • 24 V supply (actuator supply)/bus connection (Ethernet 1) 500 V AC 50 Hz 1 min.
  • 24 V supply (communications power and sensor supply, IO-Link ports)/bus connection (Ethernet 1) 500 V AC 50 Hz 1 min.
  • 24 V supply (communications power and sensor supply, IO-Link ports)/bus connection (Ethernet 2) 500 V AC 50 Hz 1 min.
  • 24 V supply (actuator supply)/bus connection (Ethernet 2) 500 V AC 50 Hz 1 min.
  • Bus connection (Ethernet 1)/FE 500 V AC 50 Hz 1 min.
  • Bus connection (Ethernet 2)/FE 500 V AC 50 Hz 1 min.

Environmental Product Compliance

• China RoHS
  • Environmentally Friendly Use Period = 25;
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'

Interfaces

• Connection method
  • M12 fast connection technology
• Designation
  • EtherCAT®
• Designation connection point
  • Copper cable
• No. of channels
  • 2
• Note on the connection method
  • D-coded
• Number of positions
  • 4
• Transmission speed
  • 100 Mbps (with auto negotiation)

Standards and Regulations

• Mechanical tests
  • Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g
  • Continuous shock according to EN 60068-2-27/IEC 60068-2-27 10g
  • Shock in acc. with EN 60068-2-27/IEC 60068-2-27 30g, 11 ms period, half-sine shock pulse
• Protection class
  • III (IEC 61140, EN 61140, VDE 0140-1)

Supply

• Connection method
  • M12 connector (T-coded)
• Current consumption
  • typ. 28 mA ±15 % (at 24 V DC)
  • typ. 180 mA ±15 % (at 24 V DC)
• Designation
  • Actuators (UA)
  • Module electronics and sensors (US)
• Number of positions
  • 4
• Supply voltage
  • 24 V DC
• Supply voltage range
  • 18 V DC - 31.2 V DC (including all tolerances, including ripple)
  • 19.5 V DC - 31.2 V DC (including all tolerances, including ripple)

System limits of the bus coupler

• Designation
  • EtherCAT®
• Equipment type
  • EtherCAT® slave
• Specification
  • ETG.1000 V1.02
• System-specific protocols
  • Mailbox protocols CANopen® over EtherCAT®
  • Mailbox protocols File access over EtherCAT®
• Type of addressing
  • Logical addressing
  • Fixed position addressing
  • Auto-increment addressing
