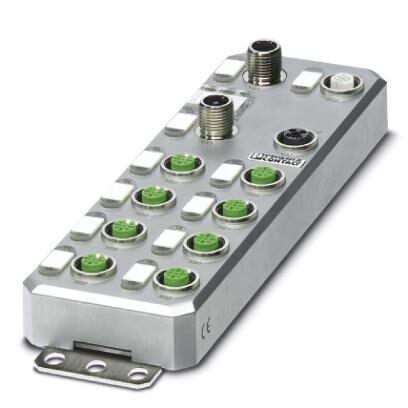

Phoenix Contact 2701505

Ambient conditions

• Air pressure (operation)
  • 70 kPa - 106 kPa (up to 3000 m above sea level)
• Air pressure (storage/transport)
  • 70 kPa - 106 kPa (up to 3000 m above sea level)
• Ambient temperature (operation)
  • -25 °C - 60 °C
• Ambient temperature (storage/transport)
  • -25 °C - 85 °C
• Degree of protection
  • IP65/IP67
• Permissible humidity (operation)
  • 5 % - 95 %
• Permissible humidity (storage/transport)
  • 5 % - 95 %

Digital inputs

• Connection method
  • M12 connector, double occupancy
• Connection technology
  • 4-wire
• Description of the input
  • EN 61131-2 types 1 and 3
• Input filter time
  • < 1000 µs
• Input name
  • Digital inputs
• Input voltage range "0" signal
  • 0 V - 5 V DC
• Input voltage range "1" signal
  • 11 V DC - 30 V DC
• Nominal input current at UIN
  • typ. 3 mA
• Nominal input voltage UIN
  • 24 V DC
• Number of inputs
  • 16
• Protective circuit
  • Overload protection, short-circuit protection of sensor supply

Dimensions

• Depth
  • 38 mm
• Drill hole spacing
  • 198.5 mm
• Height
  • 185 mm
• Note on dimensions
  • The height is 194.5 mm including the mounting plate. With fixing clips pulled out, the height is 212 mm. The depth is 38 mm including the mounting plate (30.5 mm without the mounting plate).
• Width
  • 60 mm

Electrical isolation

• Test section
  • 24 V supply (actuator supply)/bus connection 500 V AC 50 Hz 1 min.
  • 24 V supply (actuator supply)/24 V supply (communications power and sensor supply, digital inputs) 500 V AC 50 Hz 1 min.
  • Bus connection / FE 500 V AC 50 Hz 1 min.
  • 24 V supply (communications power and sensor supply, digital inputs)/FE 500 V AC 50 Hz 1 min.
  • 24 V supply (actuator supply)/FE 500 V AC 50 Hz 1 min.
  • 24 V supply (communications power and sensor supply, digital inputs)/bus connection 500 V AC 50 Hz 1 min.

Environmental Product Compliance

• China RoHS
  • Environmentally Friendly Use Period = 25;
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
• REACh SVHC
  • Lead 7439-92-1

Interfaces

• Address area assignment
  • 1 - 126, adjustable
• Connection method
  • M12 fast connection technology
• Designation
  • PROFIBUS DP
• Designation connection point
  • Copper cable
• No. of channels
  • 2
• Note on the connection method
  • B-coded
• Number of positions
  • 5
• Transmission physics
  • PROFIBUS-DP-compliant copper cable
• Transmission speed
  • 9.6 kbps - 12 Mbps (Automatic baud rate detection)

Note

• Utilization restriction
  • EMC: class A product, see manufacturer's declaration in the download area

Standards and Regulations

• Mechanical tests
  • Continuous shock according to EN 60068-2-27/IEC 60068-2-27 10g
  • Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g
  • Shock in acc. with EN 60068-2-27/IEC 60068-2-27 30g, 11 ms period, half-sine shock pulse
• Protection class
  • III (IEC 61140, EN 61140, VDE 0140-1)

Supply

• Connection method
  • M12 connector (T-coded)
• Current consumption
  • typ. 3 mA ±15 % (at 24 V DC)
  • typ. 165 mA ±15 % (at 24 V DC)
• Designation
  • Actuators (UA) for additional devices
  • Module electronics and sensors (US)
• Number of positions
  • 4
• Supply voltage
  • 24 V DC
• Supply voltage range
  • 18 V DC - 31.2 V DC (including all tolerances, including ripple)

System limits of the bus coupler

• Designation
  • PROFIBUS DP
• Equipment type
  • PROFIBUS slave
• System-specific protocols
  • PROFIBUS protocols DP V1
