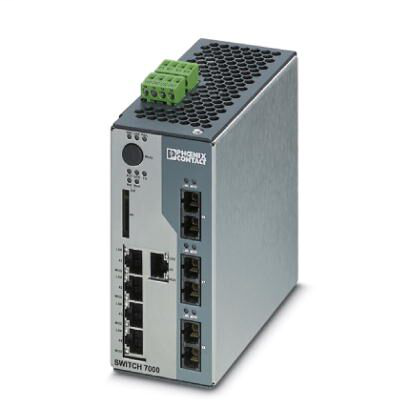

Phoenix Contact 2701420

Ambient conditions

• Air pressure (operation)
  • 86 kPa - 108 kPa (1500 m above sea level)
• Air pressure (storage/transport)
  • 66 kPa - 108 kPa (3500 m above sea level)
• Ambient temperature (operation)
  • -40 °C - 70 °C
• Ambient temperature (storage/transport)
  • -40 °C - 85 °C
• Degree of protection
  • IP20
• Permissible humidity (operation)
  • 10 % - 95 % (non-condensing)
• Permissible humidity (storage/transport)
  • 10 % - 95 % (non-condensing)

Connection data

• Conductor cross section AWG max.
  • 12
• Conductor cross section AWG min.
  • 24
• Conductor cross section flexible max.
  • 2.5 mm²
• Conductor cross section flexible min.
  • 0.2 mm²
• Conductor cross section solid max.
  • 2.5 mm²
• Conductor cross section solid min.
  • 0.2 mm²
• Connection method
  • Screw connection
• Stripping length
  • 7 mm

Dimensions

• Depth
  • 135.5 mm
• Height
  • 130 mm
• Width
  • 60 mm

Environmental Product Compliance

• China RoHS
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
  • Environmentally Friendly Use Period = 50 years
• REACh SVHC
  • Lead 7439-92-1

Function

• Additional functions
  • MAC-based Port Security
• Basic functions
  • Store-and-forward switch, complies with IEEE 802.3
• Configuration memory
  • max. 8 GByte (SD card)
• Diagnostic functions
  • SNMP-Traps
  • N:1-Portmirroring
  • LLDP (Link Layer Discovery Protocol)
  • RMON History
  • Remanente Event-Table
  • ACD (Address Conflict Detection)
• EtherNet/IP™ supported protocols
  • Common Industrial Protocol
• Filter functions
  • IGMP Snooping/Querier (v1/v2)
  • Link Aggregation (up to 4 trunks)
  • Static Multicast Filtering (32 groups)
  • Auto-Query-Port
  • VLAN (up to 32 VLANs)
  • Port-Priorisierung
  • Quality of Service (8 priority classes)
  • Extended Multicast Filtering
• IP parameterization
  • BootP
  • DHCP Option 82 (Relay Agent)
  • DHCP server (pool-based, port-based)
  • DHCP-Client
• MAC address table
  • 16k
• Management
  • Web-based management (HTTP/HTTPS)
  • SNMPv1/v2/v3
• PROFINET conformance class
  • Conformance-Class A
• PROFINET device function
  • Fast Startup
• Redundancy
  • Large Tree Support
  • RSTP (Rapid Spanning Tree Protocol)
  • DLR (Device Level Ring)
  • FRD (Fast Ring Detection)
• Signal contact control current
  • 1 A (maximum)
• Signal contact control voltage
  • 24 V DC (typical)
• Status and diagnostic indicators
  • LEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link and switchable Activity/Speed/Duplex) EtherNet/IP™ status LED: Net, Mod
• Time synchronization
  • PTP 1588 (Transparent clock on the DLR ports)

Interfaces

• Connection method
  • SC
• Interface
  • Ethernet (RJ45)
  • Ethernet FO
• No. of ports
  • 1 (SC multi-mode)
  • 2 (SC single mode)
  • 5 (RJ45 ports)
• Note on the connection method
  • Auto negotiation and autocrossing
• Signal LEDs
  • Data receive, link status
• Transmission length
  • 100 m (per segment)
  • 6400 m (fiberglass with F-G 50/125 0.7 dB/km F1200)
  • 36000 m (fiberglass with F-G 9/125 0.36 dB/km)
  • 3000 m (fiberglass with F-G 62.5/125 2.6 dB/km F600)
  • 11000 m (fiberglass with F-G 62.5/125 0.7 dB/km F1000)
  • 2800 m (fiberglass with F-G 50/125 1.6 dB/km F800)
• Transmission physics
  • Copper
  • Single-mode fiberglass
  • multi-mode fiberglass
• Transmission speed
  • 100 Mbps (full duplex)
  • 10/100 Mbps
• Wavelength
  • 1300 nm

Network expansion parameters

• Cascading depth
  • Network, linear, and star structure: any
• Maximum conductor length (twisted pair)
  • 100 m

Note

• Utilization restriction
  • EMC: class A product, see manufacturer's declaration in the download area

Standards and Regulations

• Electromagnetic compatibility
  • Conformance with EMC Directive 2004/108/EC
• Free from substances that could impair the application of coating
  • Yes
• Noise emission
  • EN 61000-6-4
• Noise immunity
  • EN 61000-6-2:2005
• Noxious gas test
  • ISA S71.04.2013 G3 Harsh Group A
• Test result
  • Operation/Storage/Transport: 5g, 150 Hz, Criterion 3
• Type of test
  • Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6
• Vibration (operation)
  • in acc. with IEC 60068-2-6: 5g, 150 Hz
• Vibration (storage/transport)
  • 5g, 150 Hz, in acc. with IEC 60068-2-6

Supply voltage

• Current consumption
  • 520 mA
• Residual ripple
  • 3.6 VPP (within the permitted voltage range)
• Supply voltage
  • 24 V DC (redundant)
• Supply voltage range
  • 12 V DC - 58 V DC
• Typical current consumption
  • 520 mA (at US = 24 V DC)
