Description

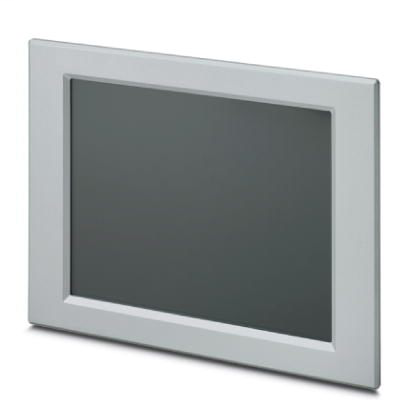

IP65-rated, 15-inch industrial panel PC (PPC) with resistive touch screen. Energy-efficient Intel® Celeron® dual-core processor. Ready for installation of mass storage device.Panel PC 2701393
Phoenix Contact 2701393 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- 0 °C - 45 °C
- Ambient temperature (storage/transport)
- -40 °C - 70 °C
- Degree of protection
- IP65 (front), IP20 (back)
- Permissible humidity (operation)
- 5 % - 95 % (non-condensing)
- Permissible humidity (storage/transport)
- 5 % - 95 % (non-condensing)
- Shock
- 15g, 11 ms in accordance with IEC 60068-2-27
- Vibration (operation)
- DIN EN 60068-2-6
Computer data
- Cooling
- active
- Interfaces
- 1x COM (RS-232/422/485)
- 4x USB 2.0
- 2x COM (RS-232)
- Mass storage
- without mass storage
- Network
- 2x Ethernet (10/100/1000 Mbps), RJ45
- Operating system
- without operating system
- Optical drive
- without drive
- Processor
- Intel® Celeron® 1020E 2.2 GHz
- RAM
- 4 GB DDR3 SODIMM
- Realtime clock
- Yes (battery-backed)
- Service life of battery
- 5 years (typical)
- Slots
- without slots
Device supply
- Power consumption
- 45.3 W (typical)
- Power supply unit
- 24 V DC ±20 %
- Supply voltage
- 24 V DC
- Supply voltage range
- 19.2 V DC - 28.8 V DC
Dimensions
- External dimension, depth
- 58 mm
- External dimension, height
- 309 mm
- External dimension, width
- 410 mm
- Installation dimension, height
- 285 mm
- Installation dimension, width
- 386.6 mm
- Note regarding external dimension
- Includes bezel
- Note regarding installation dimension
- Panel cutout
Display
- Backlighting
- CCFL
- Brightness
- 350 cd/m², typical (adjustable)
- Display
- 38.1 cm/15" TFT
- Display backlight MTBF
- > 50000 h
- Screen resolution
- 1024 x 768 Pixel(s) (XGA)
- Touch technology
- analog resistive (polyester)
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 10;
- For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Standards and Regulations
- Shock
- 15g, 11 ms in accordance with IEC 60068-2-27
- Vibration (operation)
- DIN EN 60068-2-6
