Phoenix Contact 2701257
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

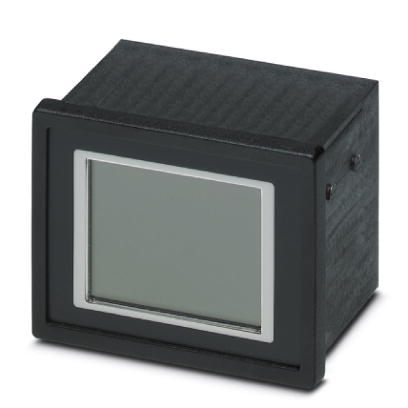

Touch panel with 7.1 cm/2.8" TFT-display (analog resistive (polyester)), 320 x 240 Pixel(s) (QVGA), 4 colors, Cortex™-M3 120 MHz, without, 1 x Ethernet (10/100 Mbps), RJ45, Keil RTX (RTOS) and user software: PC Worx. (bus system: without)Touch panel 2701257
Phoenix Contact 2701257 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- 0 °C - 50 °C
- Ambient temperature (storage/transport)
- -25 °C - 70 °C
- Degree of protection
- IP54 (front), IP20 (back)
- Permissible humidity (operation)
- 20 % - 85 % (non-condensing)
- Permissible humidity (storage/transport)
- 20 % - 85 % (non-condensing)
- Shock
- DIN EN 60068-2-27
- Vibration (operation)
- DIN EN 60068-2-6
Computer data
- Bus system
- without
- Interfaces
- without
- Mass storage
- Flash, 512 kB
- Network
- 1 x Ethernet (10/100 Mbps), RJ45
- Operating system
- Keil RTX (RTOS)
- Processor
- Cortex™-M3 120 MHz
- RAM
- 96 kB SRAM
- User software
- PC Worx
Device supply
- Power supply unit
- 24 V DC ±20 %
Dimensions
- External dimension, depth
- 60 mm
- External dimension, height
- 72 mm
- External dimension, width
- 96 mm
- Installation dimension, depth
- 53.5 mm
- Installation dimension, height
- 68.7 mm
- Installation dimension, width
- 92.8 mm
- Note regarding installation dimension
- Information on mounting cutout
Display
- Backlighting
- LED
- Brightness
- 280 cd/m², typical (adjustable)
- Colors
- 4 colors
- Display
- 7.1 cm/2.8" TFT
- Display backlight MTBF
- 40000 h
- Screen resolution
- 320 x 240 Pixel(s) (QVGA)
- Touch technology
- analog resistive (polyester)
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
- Environmentally Friendly Use Period = 15;
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Standards and Regulations
- Shock
- DIN EN 60068-2-27
- Vibration (operation)
- DIN EN 60068-2-6
