Description

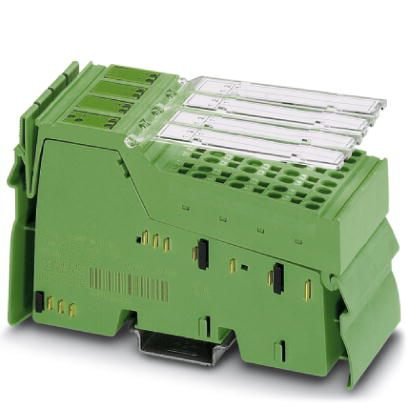

Inline Modular analog input terminal; 8 inputs, RTD (resistance temperature detector), 4-conductor connection technology, version for extreme conditions, complete with individually numbered I/O connectorsInline terminal 2701218
Phoenix Contact 2701218 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Air pressure (operation)
- 70 kPa - 106 kPa (up to 3000 m above sea level)
- Air pressure (storage/transport)
- 70 kPa - 106 kPa (up to 3000 m above sea level)
- Ambient temperature (operation)
- -40 °C - 70 °C (Extended, see section “Tested successfully: use under extreme ambient conditions” in the data sheet.)
- -25 °C - 60 °C (Standard)
- Ambient temperature (storage/transport)
- -40 °C - 85 °C
- Degree of protection
- IP20
- Permissible humidity (operation)
- 10 % - 95 % (non-condensing)
- Permissible humidity (storage/transport)
- 10 % - 95 % (non-condensing)
Analog inputs
- Connection method
- Spring-cage connection
- Connection technology
- 4-wire
- Data formats
- IB IL, S7-compatible
- Description of the input
- Input for resistive temperature sensors
- Input name
- Analog RTD inputs
- Linear resistance measuring range
- 0 Ω - 30 kΩ
- 0 Ω - 500 Ω
- 0 Ω - 5 kΩ
- Measured value representation
- 16 bits (15 bits + sign bit)
- Measuring principle
- Sigma/Delta process
- Number of inputs
- 8
- Process data update
- 1.8 s (Up to 3.3 s possible depending on operating mode)
- Resolution A/D
- 24 bit
- Sensor types (RTD) that can be used
- Pt, Ni, KTY, Cu sensors, linear resistors
Dimensions
- Depth
- 71.5 mm
- Height
- 119.8 mm
- Note on dimensions
- Housing dimensions
- Width
- 48.8 mm
Electrical isolation
- Test section
- I/O / functional earth ground 500 V AC 50 Hz 1 min.
- 7.5 V supply (bus logic), 24 V supply UANA/functional earth ground 500 V AC 50 Hz 1 min.
- 7.5 V supply (bus logic), 24 V supply UANA / I/O 500 V AC 50 Hz 1 min.
Environmental Product Compliance
- China RoHS
- Environmentally friendly use period: unlimited = EFUP-e
- No hazardous substances above threshold values
Inline potentials
- Current consumption
- typ. 6 mA
- max. 15 mA
- max. 120 mA
- typ. 95 mA
- Designation
- Communications power (UL)
- Supply of analog modules (UANA)
- Power consumption
- typ. 0.85 W
- Supply voltage
- 24 V DC (via voltage jumper)
- 7.5 V DC (via voltage jumper)
- Supply voltage range
- 19.2 V DC - 30 V DC (including all tolerances, including ripple)
Interfaces
- Connection method
- Inline data jumper
- Designation
- Inline local bus
- Transmission physics
- Copper
- Transmission speed
- 500 kbps
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Standards and Regulations
- Protection class
- III, IEC 61140, EN 61140, VDE 0140-1
