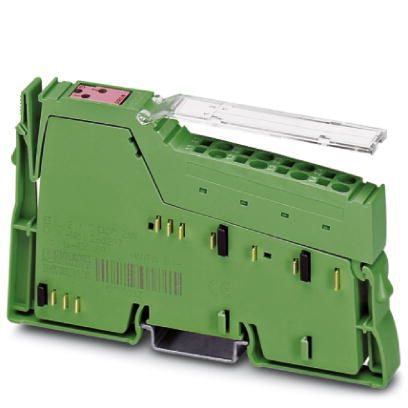

Phoenix Contact 2701214
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Inline XC, Relay terminal, Relay output: 2 (floating contacts), 24 V AC / 48 V DC, 2 A, for switching ohmic loads, Extreme conditions version, transmission speed in the local bus: 500 kbps, degree of protection: IP20, including Inline connector and labeling fieldInline terminal 2701214
Phoenix Contact 2701214 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Air pressure (operation)
- 70 kPa - 106 kPa (up to 3000 m above sea level)
- Air pressure (storage/transport)
- 70 kPa - 106 kPa (up to 3000 m above sea level)
- Ambient temperature (operation)
- -25 °C - 55 °C (Standard)
- -40 °C - 70 °C (Extended, see section “Tested successfully: use under extreme ambient conditions” in the data sheet.)
- Ambient temperature (storage/transport)
- -40 °C - 85 °C
- Degree of protection
- IP20
- Permissible humidity (operation)
- 10 % - 95 % (according to DIN EN 61131-2)
- Permissible humidity (storage/transport)
- 10 % - 95 % (according to DIN EN 61131-2)
Digital outputs
- Connection method
- Spring-cage connection
- Maximum output current per channel
- 2 A
- Maximum output current per module
- 4 A
- Nominal output voltage
- 24 V AC
- 48 V DC
- Number of outputs
- 2 (floating contacts)
- Output description
- SPDT relay contact
- Output name
- Relay output
Dimensions
- Depth
- 71.5 mm
- Height
- 119.8 mm
- Note on dimensions
- Housing dimensions
- Width
- 12.2 mm
Electrical isolation
- Test section
- Relay contact / Bus logics 1.5 kV 50 Hz 1 min.
- Contact/contact 1 kV 50 Hz 1 min.
- Contact / PE 1 kV 50 Hz 1 min.
Environmental Product Compliance
- China RoHS
- Environmentally friendly use period: unlimited = EFUP-e
- No hazardous substances above threshold values
Inline potentials
- Current consumption
- max. 30 mA
- Designation
- Communications power (UL)
- Power consumption
- 0.23 W
- Supply voltage
- 7.5 V DC (via voltage jumper)
Interfaces
- Connection method
- Inline data jumper
- Designation
- Inline local bus
- No. of channels
- 2
- Transmission speed
- 500 kbps
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Relay outputs
- Contact type
- 2 floating PDT contacts
- Limiting continuous current
- 2 A (at maximum ambient temperature)
- Mechanical service life
- 2x 105 cycles
- Switching capacity
- 62.5 VA (ohmic)
- 60 W
- 60 W
- Switching current
- min. 10 µA
- 1 A (60 V DC)
- 1 A (60 V DC)
- min. 10 µA
- 2 A (30 V DC)
- 2 A (30 V DC)
- Switching voltage
- max. 60 V DC (PELV (EN 61131))
- min. 10 mV (DC)
- max. 30 V AC (PELV (EN 61131))
Standards and Regulations
- Protection class
- III, IEC 61140, EN 61140, VDE 0140-1
