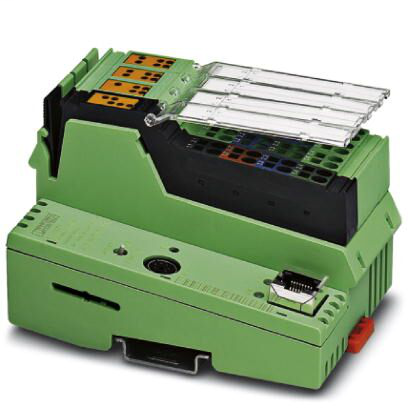

Phoenix Contact 2701141
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Inline controller for use under harsh ambient conditions, with Ethernet interface for coupling to other controllers and systems, with programming options according to IEC 61131-3, complete with connector and labeling field.Controller - ILC 151 ETH/XC - 2701141
Phoenix Contact 2701141 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Air pressure (operation)
- 70 kPa - 106 kPa (up to 3000 m above sea level)
- Air pressure (storage/transport)
- 70 kPa - 106 kPa (up to 3000 m above sea level)
- Ambient temperature (operation)
- -40 °C - 60 °C
- Ambient temperature (storage/transport)
- -40 °C - 85 °C
- Degree of protection
- IP20
- Permissible humidity (operation)
- 10 % - 95 % (according to DIN EN 61131-2)
- Permissible humidity (storage/transport)
- 10 % - 95 % (according to DIN EN 61131-2)
- Shock
- 25g, Criterion 1, according to IEC 60068-2-27
- Vibration (operation)
- 5g
Control system
- Configuration tool
- Config+ Version 1.01 or later
- Diagnostics tool
- DIAG+
- Engineering tool
- PC WORX EXPRESS
- PC WORX
- Programming languages supported
- Programming in acc. with IEC 61131-3
Data interfaces
- Connection method
- Inline data jumper
- 6-pos. MINI DIN socket (PS/2)
- RJ45 jack
- Interface
- Parameterization/operation/diagnostics
- Ethernet 10Base-T/100Base-TX
- INTERBUS local bus (master)
- Number
- 1
- Transmission speed
- 10/100 Mbps
- max. 115.2 kbps
- 500 kBaud / 2 MBaud (can be switched)
Dimensions
- Depth
- 71.5 mm
- Height
- 119.8 mm
- Width
- 80 mm
Direct I/Os
- Connection method
- Spring-cage connection
- Inline potential distributor
- Connection technology
- 2, 3, 4-wire
- Description of the input
- EN 61131-2 type 1 NPN/PNP
- Input name
- Digital inputs
- Maximum output current per channel
- 500 mA
- Number of inputs
- 8
- Number of outputs
- 4
- Output name
- Digital outputs
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
- REACh SVHC
- Lead 7439-92-1
Fieldbus function
- Amount of process data
- max. 4096 Bit (INTERBUS)
- max. 16384 Bit (internal Modbus /TCP client)
- Number of devices with parameter channel
- max. 16
- Number of local bus devices that can be connected
- max. 63 (observe current consumption)
- Number of supported branch terminals with remote bus branch
- max. 3
- Number of supported devices
- max. 128
- Program memory
- 256 kByte
General data
- Processor
- Altera Nios II 64 MHz
IEC 61131 runtime system
- Engineering tool
- PC WORX
- PC WORX EXPRESS
- Mass storage
- 256 kByte
- Number of control tasks
- 8
- Program memory
- 256 kByte
- Realtime clock
- Yes
- Retentive mass storage
- 8 kByte (NVRAM)
Mechanical design
- Controller redundancy
- No
- Diagnostics display
- No
- Safety function
- No
- Weight
- 285 g
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Power supply
- Max. current consumption
- 870 mA (370 mA communications power + 500 mA analog voltage supply)
- Power dissipation
- max. 5 W
- Residual ripple
- ± 5 %
- Supply voltage
- 24 V DC
- Supply voltage range
- 19.2 V DC - 30 V DC
- Typical current consumption
- 210 mA
PROFINET
- Device function
- PROFINET device
Standards and Regulations
- Electromagnetic compatibility
- Conformance with EMC Directive 2014/30/EU
- Immunity to burst
- Noise immunity test in accordance with EN 61000-6-2 Fast transients (burst) EN 61000-4-4/IEC 61000-4-4 Criterion A, all interfaces 1 kVCriterion B, all interfaces 2 kV
- Immunity to conducted interference
- Noise immunity test in accordance with EN 61000-6-2 Conducted interference EN 61000-4-6/IEC 61000-4-6 Criterion A, Test voltage 10 V
- Immunity to EF
- Noise immunity test in accordance with EN 61000-6-2 Electromagnetic fields EN 61000-4-3/IEC 61000-4-3 Criterion A, Field intensity: 10 V/m
- Immunity to ESD
- Noise immunity test in accordance with EN 61000-6-2 Electrostatic discharge (ESD) EN 61000-4-2/IEC 61000-4-2 Criterion B, 6 kV contact discharge, 8 kV air discharge
- Immunity to surge
- Noise immunity test in accordance with EN 61000-6-2 Transient overvoltage (surge) EN 61000-4-5/IEC 61000-4-5 Criterion B, supply lines DC: 0.5 kV/0.5 kV (symmetrical/asymmetrical), fieldbus cable shield 1 kV
- Interference emission
- Noise emission test as per EN 61000-6-4 EN 55011 Class A
- Shock
- 25g, Criterion 1, according to IEC 60068-2-27
- Vibration (operation)
- 5g
- Vibration (storage/transport)
- 5g
