Description

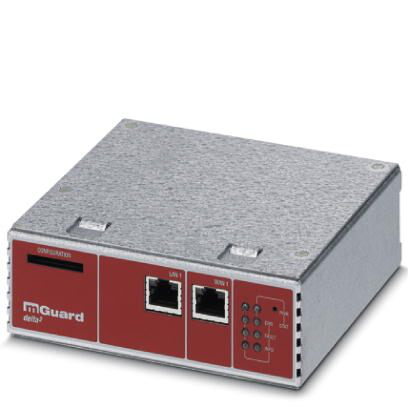

Security appliance in metal housing, for desktop applications or use in the distributor room, SD card slot, intelligent firewall with full scope of functions for maximum security and ease of configuration, router with NAT/1:1 NAT, optional VPN/CIFS integrity monitoringRouter - FL MGUARD DELTA TX/TX - 2700967
Phoenix Contact 2700967 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- 5 °C - 40 °C
- Ambient temperature (storage/transport)
- -20 °C - 70 °C
- Degree of protection
- IP20
- Permissible humidity (operation)
- 5 % - 95 % (non-condensing)
Dimensions
- Depth
- 114 mm
- Height
- 50 mm
- Width
- 130 mm
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
Function
- Basic functions
- Router with intelligent firewall (VPN, 10 tunnels as an option, up to 250 possible with additional license), CIFS Integrity Monitoring (as an option), metal housing, slot for SD memory card, extended temperature range, high-performance firewall/VPN (as an option): up to 99 Mbps / 35 Mbps (as an option)
- Processor
- 330 MHz
- Status and diagnostic indicators
- LEDs:P1, P2, Fault, State, Error, LAN, WAN
- Supported browsers
- HTTPS support required
Interfaces
- Interface
- Ethernet
- No. of ports
- 2 (RJ45)
- Signal LEDs
- Supply voltage, data transmission, error, link, activity
- Transmission length
- 100 m (per segment)
- Transmission physics
- Ethernet in RJ45 twisted pair
- Transmission speed
- 10/100 Mbps
Security functions
- Data integrity
- MD5, SHA-1, SHA 256, SHA-512
- Dynamic Host Configuration Protocol (DHCP) support
- Server or Relay Agent
- Encryption methods
- DES, 3DES, AES-128, -192, -256
- Filtering
- MAC and IP addresses, ports, protocols
- Firewall data throughput
- max. 61 Mbps (Stealth mode, default firewall rules, bidirectional throughput)
- max. 130 Mbps (Router mode, default firewall rules, bidirectional throughput)
- Firewall rules
- Configurable stateful inspection firewall with full scope of functions
- Link Layer Discovery Protocol (LLDP)
- As per protocol 802.2
- Network Time Protocol (NTP) client
- Client
- Number of VPN tunnels
- As an option, 10 tunnels up to 250 tunnels, Ipsec (IETF) standard with additional license FL MGUARD LIC VPN-10/ Order No. 2700194 or FL MGUARD LIC VPN-250/ Order No. 2700193 or 2700192.
- Protection against
- IP spoofing, DoS and Syn Flood Protection
- Remote Syslog Logging
- On externals server
- Routing
- Standard routing, NAT, 1:1-NAT, port forwarding
- Virtual private network (VPN) throughput
- max. 27 Mbps (Stealth mode, VPN bidirectional throughput)
- max. 42 Mbps (Router mode, VPN bidirectional throughput)
Standards and Regulations
- Electromagnetic compatibility
- Conformance with EMC Directive 2014/30/EU
- Noise emission
- EN 55022 / Class B
- Noise immunity
- EN 61000-6-2:2005
Supply voltage
- Max. current consumption
- 40 mA
- Supply voltage
- 230 V AC
- Supply voltage range
- 90 V AC - 264 V AC ((50/60 Hz))
- Typical current consumption
- 13 mA
