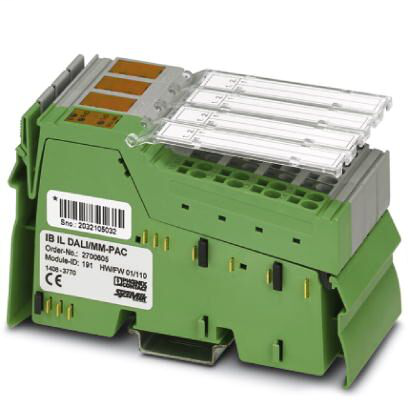

Phoenix Contact 2700605

Ambient conditions

• Air pressure (operation)
  • 80 kPa - 106 kPa (up to 2000 m above sea level)
• Air pressure (storage/transport)
  • 70 kPa - 106 kPa (up to 3000 m above sea level)
• Ambient temperature (operation)
  • -25 °C - 55 °C
• Ambient temperature (storage/transport)
  • -25 °C - 85 °C
• Degree of protection
  • IP20
• Permissible humidity (operation)
  • 10 % - 95 % (according to DIN EN 61131-2)
• Permissible humidity (storage/transport)
  • 10 % - 95 % (according to DIN EN 61131-2)

Connection data

• Conductor cross section AWG max.
  • 16
• Conductor cross section AWG min.
  • 24
• Conductor cross section flexible max.
  • 1.5 mm²
• Conductor cross section flexible min.
  • 0.08 mm²
• Conductor cross section solid max.
  • 1.5 mm²
• Conductor cross section solid min.
  • 0.2 mm²
• Connection method
  • Spring-cage connection
• Designation
  • Inline connector
• Stripping length
  • 8 mm

Dimensions

• Depth
  • 71.5 mm
• Height
  • 119.8 mm
• Note on dimensions
  • Housing dimensions
• Width
  • 48.8 mm

Electrical isolation

• Test section
  • 7.5 V supply (bus logic)/24 V supply (I/O) and functional earth ground (FE) 500 V AC 50 Hz 1 min.
  • 7.5 V supply (bus logic)/DALI bus (routine test) 1200 V AC 50 Hz 1 min.
  • 24 V supply (I/O)/DALI bus (routine test) 1200 V AC 50 Hz 1 min.
  • 24 V supply (I/O)/DALI bus 2500 V AC 50 Hz 1 min.
  • 7.5 V supply (bus logic)/DALI bus 2500 V AC 50 Hz 1 min.

Environmental Product Compliance

• China RoHS
  • No hazardous substances above threshold values
  • Environmentally friendly use period: unlimited = EFUP-e

Inline potentials

• Current consumption
  • max. 75 mA
  • max. 230 mA
• Designation
  • Main circuit supply (UM)
  • Communications power (UL)
• Power consumption
  • 3.5 W (The amount of power dissipation is heavily dependent on the bus activity, which is only influenced by the terminal itself to a limited extent. The maximum power dissipation is reached when other devices occupy the DALI bus with minimum pauses and the terminal itself does not transmit, and at the same time the DALI current of 220 mA is used in full.)
• Supply voltage
  • 24 V DC (via voltage jumper)
  • 7.5 V DC (via voltage jumper)
• Supply voltage range
  • 19.2 V DC - 30 V DC (including all tolerances, including ripple)

Interfaces

• Connection method
  • Inline data jumper
  • Inline connector
• Current carrying capacity
  • max. 220 mA (Bus load)
• Designation
  • DALI
  • Inline local bus
• Output current with short-circuit
  • max. 250 mA
• Supply voltage
  • typ. 15 V DC (Bus voltage)
• Transmission speed
  • 500 kbps
  • 1200 bps
• Type of protection
  • Bus protected up to 250 V AC, maximum

Standards and Regulations

• Protection class
  • III (IEC 61140, EN 61140, VDE 0140-1)
