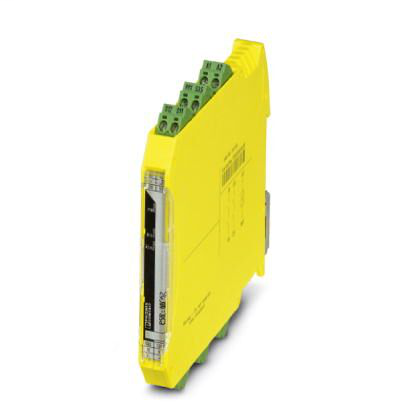

Phoenix Contact 2700575

Alarm outputs

• Current
  • max. 100 mA
• Designation
  • M1
• Maximum inrush current
  • 500 mA (Δt = 1 ms at Us)
• Number of outputs
  • 1 (digital, PNP)
• Output description
  • non-safety-related
  • PNP
• Short-circuit protection
  • Yes
• Voltage
  • 22 V DC (Us - 2 V)

Ambient conditions

• Ambient temperature (operation)
  • -35 °C - 60 °C (observe derating)
• Ambient temperature (storage/transport)
  • -40 °C - 85 °C
• Maximum altitude
  • ≤ 2000 m (Above sea level)
• Max. permissible humidity (storage/transport)
  • 75 % (on average, 85% infrequently, non-condensing)
• Max. permissible relative humidity (operation)
  • 75 % (on average, 85% infrequently, non-condensing)

Connection capacity

• Conductor cross section AWG / kcmil
  • 24 - 16
• Conductor cross section flexible
  • 0.2 mm² - 1.5 mm²
• Conductor cross section flexible, with ferrule without plastic sleeve
  • 0.25 mm² - 1.5 mm² (only together with CRIMPFOX 6)
• Conductor cross section, flexible, with ferrule, with plastic sleeve
  • 0.25 mm² - 1.5 mm² (only together with CRIMPFOX 6)
• Conductor cross section solid
  • 0.2 mm² - 1.5 mm²
• Connection method
  • Push-in spring connection
• Cylindrical gauge a x b / diameter
  • 2.4 mm x 1.5 mm / 1.9 mm
• pluggable
  • Yes
• Stripping length
  • 8 mm

Digital inputs

• Concurrence input 1/2
  • < 0.5 s
• Current consumption
  • < 4.2 mA (with Us/Ix to S12/S22)
  • < 5.1 mA (typically with US)
• Description of the input
  • safety-related sensor inputs
  • non-safety-related
• Input name
  • Feedback circuit
  • S12, S22
  • Sensor circuit
  • S35
• Inrush current
  • < 10 mA (with Us/Ix to S12/S22)
  • < 5.5 mA (typically with US)
• Max. permissible overall conductor resistance
  • 150 Ω
• Number of inputs
  • 1
  • 2

Dimensions

• Depth
  • 114.5 mm
• Height
  • 116.6 mm
• Width
  • 12.5 mm

Environmental Product Compliance

• China RoHS
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
  • Environmentally Friendly Use Period = 50 years
• REACh SVHC
  • Lead 7439-92-1

Note

• Utilization restriction
  • EMC: class A product, see manufacturer's declaration in the download area

Power supply

• Designation
  • A1/A2
• Filter time
  • 10 ms (For the logic. At A1 in the event of voltage dips at Us )
• Inrush current
  • typ. 20 A (Δt = 10 µs at Us)
• Power consumption at US
  • typ. 0.96 W
• Protective circuit
  • Protection against polarity reversal for rated control circuit supply voltage
  • Surge protection Suppressor diode
• Rated control circuit supply voltage US
  • 24 V DC -20 % / +25 %
  • 19.2 V DC - 30 V DC
• Rated control supply current IS
  • typ. 40 mA

Relay outputs- enabling current path

• Contact material
  • AgSnO₂ (enabling current path)
• Contact type
  • 2 enabling current paths
• Inrush current
  • min. 3 mA
  • max. 6 A
• Limiting continuous current
  • 6 A (observe derating)
• Mechanical service life
  • 10x 10⁶ cycles
• Number of outputs
  • 2 (undelayed)
• Output description
  • safety-related N/O contacts
• Output fuse
  • 6 A gL/gG (N/O contact)
• Output name
  • Enabling current paths
  • 13/14, 23/24
• Sq. Total current
  • 72 A² (observe derating)
• Switching capacity
  • min. 60 mW
• Switching frequency
  • 1 Hz
• Switching voltage
  • min. 12 V AC/DC
  • max. 250 V AC/DC (Observe the load curve)

Safety-related characteristic data

• Category
  • 4 (4 A DC13; 5 A AC15; 8760 switching cycles/year)
• Designation
  • IEC 61508 - High demand
  • EN 62061
  • EN ISO 13849
• Performance level (PL)
  • e (4 A DC13; 5 A AC15; 8760 switching cycles/year)
• Safety Integrity Level Claim Limit (SIL CL)
  • 3 (4 A DC13; 5 A AC15; 8760 switching cycles/year)
• Safety Integrity Level (SIL)
  • 3 (4 A DC13; 5 A AC15; 8760 switching cycles/year)
• Stop category
  • 0
• Type class
  • IIIC

Standards and Regulations

• Conformance
  • CE-compliant
• Degree of pollution
  • 2
• Designation
  • Air clearances and creepage distances between the power circuits
• Overvoltage category
  • III
• Rated insulation voltage
  • 250 V AC
• Rated surge voltage/insulation
  • Safe isolation, reinforced insulation 6 kV: between (A1, A2, S11, S12, S21, S22, S35, M1) and enabling current path (13/14) between (A1, A2, S11, S12, S21, S22, S35, M1) and enabling current path (23/24) between enabling current paths
  • Basic insulation 4 kV between all current paths and housing
• Shock
  • 15g
• Standards/regulations
  • DIN EN 50178
• Vibration (operation)
  • 10 Hz - 150 Hz, 2g

Times

• Recovery time
  • < 500 ms
• Restart time
  • < 2 s (Boot time)
• Typical release time at US
  • < 5 ms (when interrupted via A1; applicative deactivation via A1/A2 is not permitted)
  • < 10 ms (when controlled via S12/S22)
• Typical response time at US
  • < 50 ms
