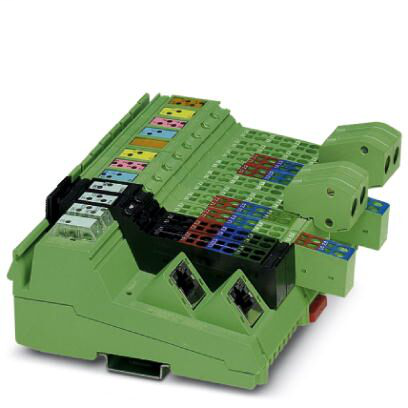

Phoenix Contact 2700174

Ambient conditions

• Air pressure (operation)
  • 80 kPa - 108 kPa (up to 2000 m above sea level)
• Air pressure (storage/transport)
  • 66 kPa - 108 kPa (up to 3500 m above sea level)
• Ambient temperature (operation)
  • -25 °C - 60 °C
• Ambient temperature (storage/transport)
  • -25 °C - 85 °C
• Degree of protection
  • IP20
• Permissible humidity (operation)
  • max. 85 % (non-condensing)

Analog outputs

• Connection technology
  • 2-wire
• D/A converter resolution
  • 10 bit
• Number of outputs
  • 2
• Type of protection
  • Short-circuit/overload protection
• Voltage output signal
  • -10 V - 10 V

Digital inputs

• Connection method
  • Spring-cage connection
• Connection technology
  • 2, 3-wire
• Input name
  • Digital inputs
• Input voltage range
  • -30 V DC - 30 V DC
• Input voltage range "0" signal
  • -30 V DC - 5 V DC
• Input voltage range "1" signal
  • 15 V DC - 30 V DC
• Nominal input voltage UIN
  • 24 V DC
• Number of inputs
  • 8
• Protective circuit
  • Short-circuit protection, overload protection of the sensor supply

Digital outputs

• Behavior with inductive overload
  • Output can be destroyed
• Behavior with overload
  • Auto restart
• Connection method
  • Spring-cage connection
• Connection technology
  • 2-wire
• Maximum output current per channel
  • 500 mA
• Maximum output current per module / terminal block
  • 2 A
• Nominal load, inductive
  • 12 VA (1.2 H, 50 Ω)
• Nominal load, lamp
  • 12 W
• Nominal load, ohmic
  • 12 W (48 Ω)
• Number of outputs
  • 4
• Output name
  • Digital outputs
• Output voltage
  • 24 V DC
• Protective circuit
  • Short-circuit and overload protection
• Reverse voltage resistance to short pulses
  • Reverse voltage proof

Dimensions

• Depth
  • 57 mm
• Height
  • 141 mm
• Note on dimensions
  • Specfications with connectors
• Width
  • 156 mm

Encoder inputs

• Description of the input
  • Position detection with incremental signal from rotary/linear encoder
• Encoder supply current
  • 250 mA (Short-circuit and overload protection)
• Encoder supply voltage
  • 24 V
• Input frequency
  • to 300 kHz
• Input name
  • Encoder input, 2 square-wave signals with 90 degree offset
• Number of inputs
  • 2

Environmental Product Compliance

• China RoHS
  • Environmentally friendly use period: unlimited = EFUP-e
  • No hazardous substances above threshold values

Inline potentials

• Current consumption
  • max. 2 A
  • typ. 750 mA
  • max. 1 A
  • max. 950 mA
• Designation
  • Feed-in of the sensor supply US₂
  • Feed-in of the actuator supply UA₂
  • Feed-in of the sensor supply US₁
  • Supply of the logic voltage UL
  • Feed-in of the actuator supply UA₁
• Power supply unit
  • max. 8 A
• Supply voltage
  • 24 V DC
• Supply voltage range
  • 19.2 V DC - 30 V DC (including all tolerances, including ripple)

Interfaces

• Connection method
  • RJ45 jack
• Designation
  • Sercos
• No. of channels
  • 2
• Transmission physics
  • Copper
• Transmission speed
  • 100 Mbps

Note

• Utilization restriction
  • EMC: class A product, see manufacturer's declaration in the download area

Standards and Regulations

• Mechanical tests
  • Shock in acc. with EN 60068-2-27/IEC 60068-2-27 25g
  • Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g
• Noise emission
  • Industrial environment
