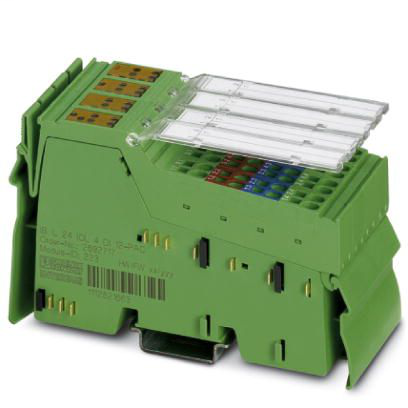

Inline IO-Link master, complete with accessories (connector and labeling field), 4 IO-Link ports, 12 digital inputs, 24 V DC, 2, 3-wire connection methodInline function terminal 2692717
Phoenix Contact 2692717 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Air pressure (operation)
- 70 kPa - 106 kPa (up to 3000 m above sea level)
- Air pressure (storage/transport)
- 70 kPa - 106 kPa (up to 3000 m above sea level)
- Ambient temperature (operation)
- -25 °C - 55 °C
- Ambient temperature (storage/transport)
- -25 °C - 85 °C
- Degree of protection
- IP20
- Permissible humidity (operation)
- 10 % - 95 % (according to DIN EN 61131-2)
- Permissible humidity (storage/transport)
- 10 % - 95 % (according to DIN EN 61131-2)
Digital inputs
- Connection method
- Inline connector
- Inline connector
- Connection technology
- 3-wire
- Delay at signal change from 0 to 1
- 3 ms
- Delay at signal change from 1 to 0
- 3 ms
- Description of the input
- IEC 61131-2 type 1
- Input name
- Digital inputs
- Digital inputs
- Input voltage range
- 0 V DC - 30 V DC
- Input voltage range "0" signal
- < 5 V (typ.)
- Input voltage range "1" signal
- > 11 V DC (typ.)
- Nominal input current
- 5.5 mA (at 24 V DC)
- Nominal input current at UIN
- 2.2 mA
- Number of inputs
- 12
- max. 4
- Permissible cable length
- 20 m
- Signal delay
- 3 ms
- 3 ms
Digital outputs
- Behavior in case of short-circuit
- Short-circuit protection
- Behavior with overload
- Output may be damaged
- Limitation of the voltage induced on circuit interruption
- approx. -1 V
- Maximum total current consumption
- max. 800 mA
- Nominal current per channel
- max. 200 mA (INominal)
- Number of outputs
- max. 4
- Type of protection
- Short-circuit protection
Dimensions
- Depth
- 71.5 mm
- Height
- 119.8 mm
- Width
- 48.8 mm
Electrical isolation
- Test section
- 24 V supply US (IO-Link and digital inputs) / functional earth ground 500 V DC 50 Hz 1 min.
- 7.5 V supply (bus logics) / functional earth ground 500 V DC 50 Hz 1 min.
- 24 V supply US (IO-Link and digital inputs) / 7.5 V supply (bus logic) 500 V DC 50 Hz 1 min.
Environmental Product Compliance
- China RoHS
- Environmentally friendly use period: unlimited = EFUP-e
- No hazardous substances above threshold values
Inline potentials
- Current consumption
- max. 2 A (with load and port supply)
- max. 52 mA (without load)
- max. 100 mA
- Designation
- Segment circuit supply (US)
- Communications power (UL)
- Supply voltage
- 24 V DC (via voltage jumper)
- 7.5 V (via voltage jumper)
- Supply voltage range
- 19.2 V DC - 30 V DC (including all tolerances, including ripple)
Interfaces
- Connection method
- Inline data jumper
- Designation
- Inline local bus
- No. of channels
- 2
- Transmission speed
- 500 kbps
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Standards and Regulations
- Protection class
- III, IEC 61140, EN 61140, VDE 0140-1
