Phoenix Contact 2404636
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

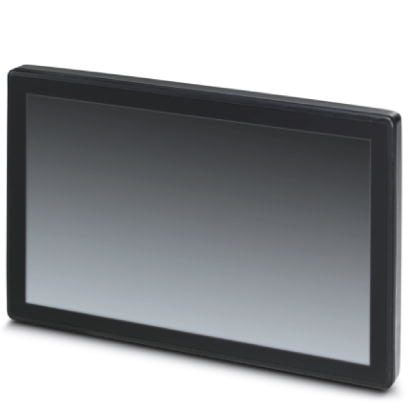

Terminal PC with 43,2 cm / 17"-TFT-display (Capacitive multi-touch screen), 1920 x 1080 Pixel(s) (Full HD), Intel® Celeron® 2980U 1,60 Ghz, 1x USB 2.0, 2x USB 3.0 (one of which is led outside from the back), 2x Ethernet (10/100/1000 Mbps), RJ45, Windows® Embedded Standard 7 (64-Bit) and user software: without user software. (bus system:)Terminal PC 2404636
Phoenix Contact 2404636 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- 0 °C - 50 °C
- Degree of protection
- IP65
- Permissible humidity (operation)
- 10 % - 85 % (non-condensing)
- Permissible humidity (storage/transport)
- 10 % - 85 % (non-condensing)
- Shock
- DIN EN 60068-2-27
- Vibration (operation)
- DIN EN 60068-2-6
Computer data
- Cooling
- passive
- Interfaces
- 2x USB 3.0 (one of which is led outside from the back)
- 1x USB 2.0
- Mass storage
- mSATA SSD (MLC), 128 GB
- Monitor output
- 1x HDMI
- 1x DisplayPort
- Network
- 2x Ethernet (10/100/1000 Mbps), RJ45
- Operating system
- Windows® Embedded Standard 7 (64-Bit)
- Processor
- Intel® Celeron® 2980U 1,60 Ghz
- RAM
- 4 GB DDR3
- User software
- without user software
Device supply
- Power supply unit
- 24 V DC +/- 20 %
Dimensions
- External dimension, depth
- 68 mm
- External dimension, height
- 261 mm
- External dimension, width
- 431 mm
Display
- Backlighting
- LED
- Display
- 43,2 cm / 17"-TFT
- Screen resolution
- 1920 x 1080 Pixel(s) (Full HD)
- Touch technology
- Capacitive multi-touch screen
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Standards and Regulations
- Shock
- DIN EN 60068-2-27
- Vibration (operation)
- DIN EN 60068-2-6
