Description

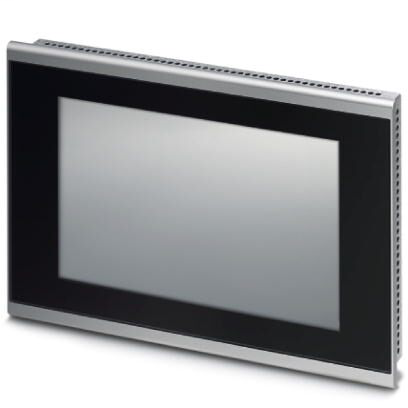

IP65-rated Valueline® industrial panel PC (PPC) with 17.8 cm/7-inch TFT display, fanless design, and Intel® Atom™ E3845 processor. Up to 4 GB of RAM. Mass storage options up to 64 GB.Panel PC - VL2 PPC7 1000 - 2403708
Phoenix Contact 2403708 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- 0 °C - 50 °C
- Ambient temperature (storage/transport)
- -25 °C - 70 °C
- Degree of protection
- IP66 (front), IP30 (back)
- Permissible humidity (operation)
- 20 % - 85 % (non-condensing)
- Permissible humidity (storage/transport)
- 20 % - 85 % (non-condensing)
- Shock
- DIN EN 60068-2-27
- Vibration (operation)
- 1g, according to EN 60068-2-6
Computer data
- Cooling
- passive
- Graphics card
- Intel® HD Graphics
- Interfaces
- 1x COM (RS-232/422/485)
- 2x USB 2.0
- 1x USB 3.0
- Mass storage
- SATA DOM SSD (SLC), 8 GB
- SATA DOM SSD (SLC),16 GB
- SATA DOM SSD (SLC), 32 GB
- SATA DOM SSD (MLC), 64 GB
- Monitor output
- 1x DisplayPort
- Network
- 2x Ethernet (10/100/1000 Mbps), RJ45
- Operating system
- Windows® Embedded Standard 7 SP1 (32-bit), Multi-language
- Windows® 10 IoT Enterprise LTSB 2015 (64-bit), Multi-language
- Windows® Embedded Standard 7 SP1 (64-bit), Multi-language
- Windows® 7 Ultimate SP1 (64 bit), Multi-language
- Windows® 10 IoT Enterprise LTSB 2015 (32-bit), Multi-language
- without operating system
- Windows® 7 Professional SP1 (32-bit), German
- Windows® 7 Professional SP1 (64-bit), English
- Windows® 7 Professional SP1 (64-Bit), German
- Windows® 7 Ultimate SP1 (32-bit), Multi-language
- Windows® 7 Professional SP1 (32-bit), English
- Optional interfaces
- Without optional interface
- 1x COM (RS-232), 1x COM (RS-485)
- 1x COM (RS-232), 1x COM (RS-485), 2x CAN
- Processor
- Intel® Atom™ E3845 1.91 GHz
- RAM
- 4 GB DDR3
- Realtime clock
- Yes (battery-backed)
- Service life of battery
- 5 years (typical)
- Slots
- 1x SD
Device supply
- Power supply unit
- 24 V DC ±20 %
- Typical current consumption
- 1.1 A
Dimensions
- Installation depth
- 111 mm
- Installation dimensions: width, height, depth
- 198 mm x 138 mm x 105 mm (Installation cutout (± 0.5 mm))
- Outer dimensions: width, height, depth
- 88 mm
- 208 mm x 149 mm x 6 mm (Front plate)
Display
- Backlighting
- LED
- Brightness
- 400 cd/m², typical (adjustable)
- Colors
- 16.7 million colors
- Display
- 17.8 cm/7" TFT
- Display backlight MTBF
- > 50000 h
- Reading angle bottom
- 60 °
- Reading angle left
- 70 °
- Reading angle right
- 70 °
- Reading angle top
- 60 °
- Screen resolution
- 800 x 480 Pixel(s) (WVGA)
- Touch technology
- Projective-capacitive, four-touch control
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 15;
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- REACh SVHC
- Lead 7439-92-1
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Standards and Regulations
- Shock
- DIN EN 60068-2-27
- Vibration (operation)
- 1g, according to EN 60068-2-6
