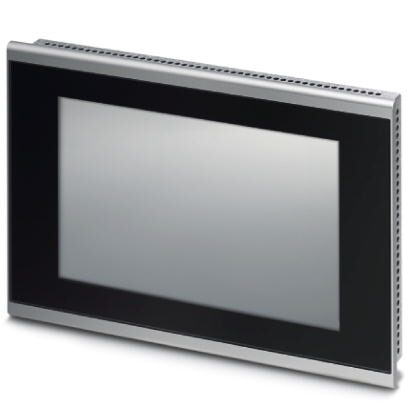

Phoenix Contact 2403462
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Touch panel with 39.6 cm/15.6" TFT-display (Projective-capacitive (PCAP)), 1366 x 768 pixel(s) (WXGA), 65536 colors, Arm® Cortex®-A8, 1000 MHz, 2x USB host 2.0, 1 x Ethernet (10/100 Mbps), RJ45, Windows® Embedded Compact 7 and user software: Visu+. (bus system: without)Touch panel - TP 3156W/P - 2403462
Phoenix Contact 2403462 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- 0 °C - 50 °C
- Ambient temperature (storage/transport)
- -25 °C - 70 °C
- Degree of protection
- NEMA 4X
- IP65 (front), IP20 (back)
- Permissible humidity (operation)
- 20 % - 85 % (non-condensing)
- Permissible humidity (storage/transport)
- 20 % - 85 % (non-condensing)
- Shock
- DIN EN 60068-2-27
- Vibration (operation)
- DIN EN 60068-2-6
Computer data
- Bus system
- without
- Interfaces
- 2x USB Host 2.0
- Mass storage
- NAND-Flash, 1 GB
- Network
- 1 x Ethernet (10/100 Mbps), RJ45
- Operating system
- Windows® Embedded Compact 7
- Processor
- Arm® Cortex®-A8, 1000 MHz
- RAM
- 512 MB LPDDR RAM
- Realtime clock
- Yes (battery-backed)
- Service life of battery
- 5 years (typical)
- Slots
- 1x SD
- User software
- Visu+
Device supply
- Power consumption
- typ. 24 W
- Power supply unit
- 24 V DC ±20 %
- Supply voltage
- 24 V DC
- Supply voltage range
- 18 V DC - 30 V DC
- Typical current consumption
- 1 A
Dimensions
- Installation dimensions: width, height, depth
- 425 mm x 260 mm x 53 mm (Installation cutout)
- Outer dimensions: width, height, depth
- 436 mm x 278 mm x 6 mm (Dimensions of the front plate)
Display
- Backlighting
- LED
- Brightness
- 320 cd/m² typical (adjustable)
- Colors
- 65536 colors
- Display
- 39.6 cm/15.6" TFT
- Display backlight MTBF
- 70000 h
- Reading angle bottom
- 80 °
- Reading angle left
- 80 °
- Reading angle right
- 80 °
- Reading angle top
- 80 °
- Screen resolution
- 1366 x 768 Pixel(s) (WXGA)
- Touch technology
- Projective-capacitive (PCAP)
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 15;
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- REACh SVHC
- Lead 7439-92-1
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Standards and Regulations
- Shock
- DIN EN 60068-2-27
- Vibration (operation)
- DIN EN 60068-2-6
