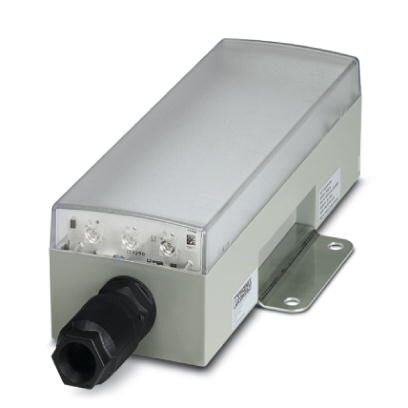

Phoenix Contact 2403122
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
LED light, 230 V AC, color temperature 5000 K, length 362 mm, QUICKON connection, Light housing: Plastic, directional light (top/bottom), Suitable for series connection of several lightsLED light - PLD T/1AC/UD/2CON - 2403122
Phoenix Contact 2403122 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Air pressure (operation)
- 70 kPa - 106 kPa (up to 3000 m above sea level)
- Air pressure (storage/transport)
- 70 kPa - 106 kPa (up to 3000 m above sea level)
- Ambient temperature (operation)
- -40 °C - 70 °C
- Ambient temperature (storage/transport)
- -40 °C - 85 °C
- Degree of protection
- IP67
- Permissible humidity (operation)
- 95 %
- Permissible humidity (storage/transport)
- 95 % (non-condensing)
Dimensions
- Height
- 76.2 mm
- Length
- 362 mm
- Note on dimensions
- Specfications with connectors
- Width
- 91.7 mm
Environmental Product Compliance
- China RoHS
- No hazardous substances above threshold values
- Environmentally friendly use period: unlimited = EFUP-e
Light properties
- Color rendering index
- 70
- Color temperature / wavelength
- 5000 K
- Light color
- Neutral white
- Luminous flux
- 1100 lm (Gross)
- Number of LEDs
- 6
- Service life, lighting appliance
- 50,000 h (L70)
- Source of light type
- LED
Power supply for module electronics
- Connection method
- QUICKON fast connection
- Connection technology
- QUICKON connection
- Current consumption
- typ. 42 mA (for 230 V AC)
- Number of positions
- 5
- Power consumption
- approx. 10 W (for 230 V AC)
- Supply voltage
- 230 V AC
- Supply voltage range
- 100 V AC - 250 V AC (50/60 Hz)
Standards and Regulations
- Mechanical tests
- Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 4g
- Shock in acc. with EN 60068-2-27/IEC 60068-2-27 50g
- Overvoltage category
- III
- Protection class
- II
