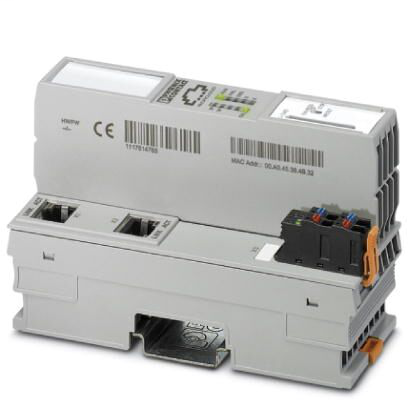

Phoenix Contact 2402985
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Axiocontrol for communicating with the PROFICLOUD. For controlling Axioline I/Os directly. With 2 Ethernet interfaces and programming capabilities according to IEC 61131-3. Complete with connector plug and marking field.Controller - AXC CLOUD-PRO - 2402985
Phoenix Contact 2402985 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Air pressure (operation)
- 70 kPa - 106 kPa (up to 3000 m above sea level)
- Air pressure (storage/transport)
- 70 kPa - 106 kPa (up to 3000 m above sea level)
- Ambient temperature (operation)
- -25 °C - 60 °C
- Ambient temperature (storage/transport)
- -40 °C - 85 °C
- Degree of protection
- IP20
- Permissible humidity (operation)
- 10 % - 95 % (according to DIN EN 61131-2)
- Permissible humidity (storage/transport)
- 10 % - 95 % (according to DIN EN 61131-2)
- Shock
- 25g, Criterion 1, according to IEC 60068-2-27
- Vibration (operation)
- 5g
Control system
- Cloud platform
- Proficloud
- Engineering tool
- PC WORX
- Programming languages supported
- Programming in acc. with IEC 61131-3
- Supports cloud computing
- yes
Data interfaces
- Connection method
- Micro USB type B
- Bus base module
- RJ45 jack
- Interface
- Ethernet
- Axioline F local bus
- Parameterization/operation/diagnostics
- Number
- 1
- 2
- Transmission speed
- 10/100 Mbps
- 100 Mbps
Dimensions
- Depth
- 74 mm
- Height
- 125.9 mm
- Width
- 45 mm
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- REACh SVHC
- Lead 7439-92-1
Fieldbus function
- Number of supported devices
- max. 63
- Program memory
- 1 Mbyte
General data
- Processor
- Altera Nios II 100 MHz
IEC 61131 runtime system
- Engineering tool
- PC WORX
- Mass storage
- 1 Mbyte
- Number of control tasks
- 8
- Program memory
- 1 Mbyte
- Realtime clock
- Yes
- Retentive mass storage
- 48 kByte (NVRAM)
Mechanical design
- Controller redundancy
- No
- Diagnostics display
- No
- Safety function
- No
- Weight
- 225.6 g
Power supply
- Max. current consumption
- 160 mA
- Power dissipation
- max. 3 W
- Residual ripple
- ± 5 %
- Supply voltage
- 24 V DC
- Supply voltage range
- 19.2 V DC - 30 V DC
- Typical current consumption
- 125 mA
Standards and Regulations
- Electromagnetic compatibility
- Conformance with EMC Directive 2014/30/EU
- Immunity to burst
- Noise immunity test in accordance with EN 61000-6-2 Fast transients (burst) EN 61000-4-4/IEC 61000-4-4 EN 61000-4-4 (EFT burst) Criterion B; Supply lines: 2 kV; Signal/data lines: 2 kV
- Immunity to conducted interference
- Noise immunity test in accordance with EN 61000-6-2 Conducted interference EN 61000-4-6/IEC 61000-4-6 EN 61000-4-6 (line noise immunity) Criterion A, Test voltage 10 V
- Immunity to ESD
- Noise immunity test in accordance with EN 61000-6-2 Electrostatic discharge (ESD) EN 61000-4-2/IEC 61000-4-2 EN 61000-4-2 (ESD) Criterion B, 6 kV contact discharge, 8 kV air discharge
- Immunity to surge
- Noise immunity test in accordance with EN 61000-6-2 Transient overvoltage (surge) EN 61000-4-5/IEC 61000-4-5 EN 61000-4-5 (surge) Criterion B
- Interference emission
- Noise emission test as per EN 61000-6-4 EN 55011 (emitted interference) Class A
- Noise emission
- EN 61000-6-4
- Noise immunity
- Noise immunity test in accordance with EN 61000-6-2 Electromagnetic fields EN 61000-4-3/IEC 61000-4-3 EN 61000-4-3 (radiated noise immunity) Criterion A, 10 V/m
- Shock
- 25g, Criterion 1, according to IEC 60068-2-27
- Shock (operation)
- 10g (Bump endurance test according to DIN EN 60068-2-27)
- Vibration (operation)
- 5g
- Vibration (storage/transport)
- 5g
