Description

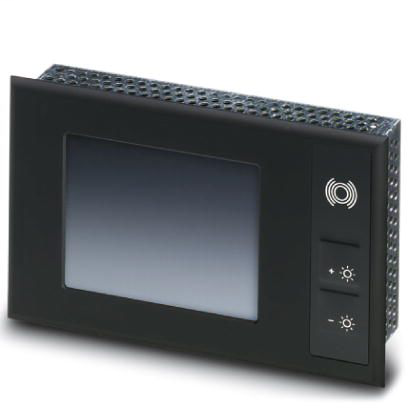

Maritime-Touch panel with 9.7 cm / 3.8"-FSTN-display (analog resistive (polyester)), 320 x 240 Pixel(s) (QVGA), 5 grayscales, Arm9™, 200 MHz, 2x USB host 2.0, 1 x Ethernet (10/100 Mbps), RJ45, Windows CE 5.0 and user software: TSvisRT. (bus system: without)Touch panel 2401362
Phoenix Contact 2401362 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- 0 °C - 55 °C
- Ambient temperature (storage/transport)
- -25 °C - 70 °C
- Degree of protection
- NEMA 4X
- IP65 (front), IP20 (back)
- Permissible humidity (operation)
- 20 % - 85 %
- Shock
- 15g, according to IEC 60068-2-27
- Vibration (operation)
- 0.7g, according to EN 60068-2-6
Computer data
- Bus system
- without
- Interfaces
- 2x USB host 2.0
- Mass storage
- NOR-Flash, 32 MB
- Network
- 1 x Ethernet (10/100 Mbps), RJ45
- Operating system
- Windows® CE 5.0
- Optional interfaces
- none
- Processor
- Arm9™, 200 MHz
- RAM
- 512 KB SRAM
- Realtime clock
- Yes
- Service life of battery
- 5 years (typical)
- User software
- TSvisRT
Device supply
- Power supply unit
- 24 V DC ±20 %
- Typical current consumption
- 0.3 A
Dimensions
- External dimension, depth
- 5 mm
- External dimension, height
- 96 mm
- External dimension, width
- 155 mm
- Installation dimension, depth
- 35 mm
- Installation dimension, height
- 88 mm
- Installation dimension, width
- 147 mm
- Note regarding external dimension
- Dimensions of the front plate
Display
- Backlighting
- LED
- Brightness
- 90 cd/m²
- Colors
- 5 grayscales
- Display
- 9.7 cm / 3.8"-FSTN
- Display backlight MTBF
- 30000 h
- Reading angle bottom
- 40 °
- Reading angle left
- 40 °
- Reading angle right
- 40 °
- Reading angle top
- 40 °
- Screen resolution
- 320 x 240 Pixel(s) (QVGA)
- Touch technology
- analog resistive (polyester)
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 15;
- For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Standards and Regulations
- Shock
- 15g, according to IEC 60068-2-27
- Vibration (operation)
- 0.7g, according to EN 60068-2-6
