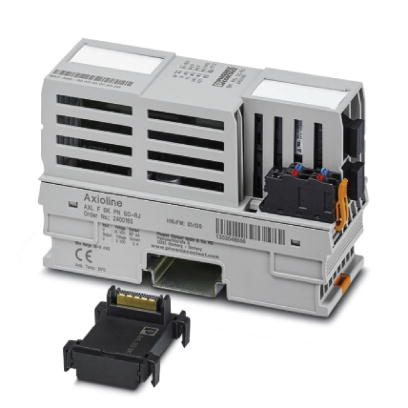

Phoenix Contact 2400165

Ambient conditions

• Air pressure (operation)
  • 70 kPa - 106 kPa (up to 3000 m above sea level)
• Air pressure (storage/transport)
  • 70 kPa - 106 kPa (up to 3000 m above sea level)
• Ambient temperature (operation)
  • -25 °C - 60 °C (Mounting position: wall mounting on horizontal DIN rail)
  • -25 °C - 55 °C (Mounting position: any)
• Ambient temperature (storage/transport)
  • -40 °C - 85 °C
• Degree of protection
  • IP20
• Permissible humidity (operation)
  • 5 % - 95 % (non-condensing)
• Permissible humidity (storage/transport)
  • 5 % - 95 % (non-condensing)

Axioline potentials

• Current consumption
  • max. 610 mA (with 2 A at UBus for the I/Os and UL = 24 V)
• Designation
  • Communications power UL feed-in (the supply of the Axioline F local bus UBus is generated from UL)
  • Axioline F local bus supply (UBus)
• Power consumption
  • max. 14.64 W (with 2 A load at UBus for the I/Os)
• Power supply unit
  • 2 A
• Supply voltage
  • 5 V DC (via bus base module)
  • 24 V DC
• Supply voltage range
  • 19.2 V DC - 30 V DC (including all tolerances, including ripple)
• Type of protection
  • Polarity reversal protection of the supply voltage
  • Surge protection of the supply voltage

Connection data

• Conductor cross section AWG max.
  • 16
• Conductor cross section AWG min.
  • 24
• Conductor cross section flexible max.
  • 1.5 mm²
• Conductor cross section flexible min.
  • 0.2 mm²
• Conductor cross section solid max.
  • 1.5 mm²
• Conductor cross section solid min.
  • 0.2 mm²
• Connection method
  • Push-in connection
• Designation
  • Axioline F connector
• Note on the connection method
  • Please observe the information provided on conductor cross sections in the “Axioline F: system and installation” user manual.
• Stripping length
  • 8 mm

Dimensions

• Depth
  • 74 mm
• Height
  • 126.1 mm
• Note on dimensions
  • The depth is valid when a TH 35-7,5 DIN rail is used (according to EN 60715).
• Width
  • 45 mm

Environmental Product Compliance

• China RoHS
  • For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
  • Environmentally Friendly Use Period = 50

Inline potentials

• Supply voltage
  • 24 V DC
• Supply voltage range
  • 19.2 V DC - 30 V DC (including all tolerances, including ripple)
  • 19.2 V DC - 30 V DC (including all tolerances, including ripple)

Interfaces

• Connection method
  • SC-RJ socket
  • Bus base module
  • Micro USB type B
• Designation
  • PROFINET
  • Axioline F local bus
  • Service
• No. of channels
  • 2
• Transmission speed
  • 100 Mbps
  • 100 Mbps (acc. to PROFINET standard)
• Wavelength
  • 660 nm

Note

• Utilization restriction
  • EMC: class A product, see manufacturer's declaration in the download area

Standards and Regulations

• Mechanical tests
  • Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g
  • Shock in acc. with EN 60068-2-27/IEC 60068-2-27 30g
  • Continuous shock according to EN 60068-2-27/IEC 60068-2-27 10g
• Protection class
  • III, IEC 61140, EN 61140, VDE 0140-1

System limits of the bus coupler

• Number of local bus devices that can be connected
  • max. 63
• Number of supported devices
  • max. 63 (per station)
