Description

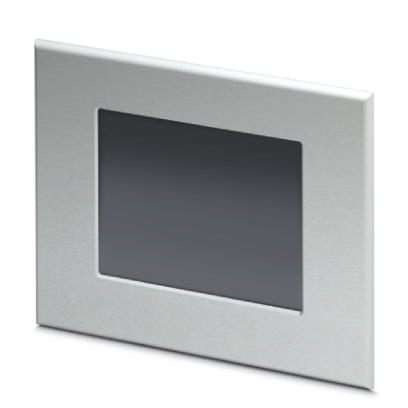

Rugged-Touch panel with 17.8 cm/7" TFT-display (Analog resistive (GFG), anti-reflective coating), 800 x 480 Pixel(s) (WVGA), 65536 colors, Arm9™, 184 MHz, 2x USB host 2.0, 1 x Ethernet (10/100 Mbps), RJ45, Windows CE 5.0 and user software: MicroBrowser. (bus system: without)Touch panel 2400164
Phoenix Contact 2400164 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -20 °C - 70 °C
- Ambient temperature (storage/transport)
- -30 °C - 80 °C
- Degree of protection
- NEMA 4X
- IP67 (front), IP20 (back)
- Permissible humidity (operation)
- 20 % - 85 % (non-condensing)
- front; non-condensing
- Permissible humidity (storage/transport)
- 5 % - 95 % (front; non-condensing)
- 20 % - 85 % (non-condensing)
- Shock
- DIN EN 60068-2-27
- Vibration (operation)
- DIN EN 60068-2-6
Computer data
- Bus system
- without
- Interfaces
- 2x USB host 2.0
- Mass storage
- Flash, 64 MB
- Network
- 1 x Ethernet (10/100 Mbps), RJ45
- Operating system
- Windows® CE 5.0
- Processor
- Arm9™, 184 MHz
- RAM
- 128 MB SDRAM
- User software
- MicroBrowser
Device supply
- Power consumption
- 6 W
- Power supply unit
- 24 V DC ±20 %
Dimensions
- External dimension, depth
- 5 mm
- External dimension, height
- 173 mm
- External dimension, width
- 234 mm
- Installation dimension, depth
- 42 mm
- Installation dimension, height
- 140 mm
- Installation dimension, width
- 200 mm
- Note regarding external dimension
- Dimensions of the front plate
- Note regarding installation dimension
- Installation cutout
Display
- Backlighting
- LED
- Brightness
- 350 cd/m², typical (adjustable)
- Colors
- 65536 colors
- Display
- 17.8 cm/7" TFT
- Display backlight MTBF
- 40000 h
- Screen resolution
- 800 x 480 Pixel(s) (WVGA)
- Touch technology
- Analog resistive (GFG), anti-reflective coating
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 15;
- For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Standards and Regulations
- Shock
- DIN EN 60068-2-27
- Vibration (operation)
- DIN EN 60068-2-6
