Phoenix Contact 2400163
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

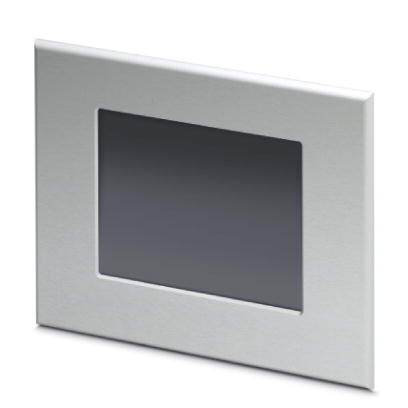

Rugged-Touch panel with 14.5 cm/5.7" TFT active-display (Analog resistive (GFG), anti-reflective coating), 320 x 240 pixel(s) (QVGA), 65536 colors, Arm9™, 184 MHz, 2x USB host 2.0, 1 x Ethernet (10/100 Mbps), RJ45, Windows CE 5.0 and user software: MicroBrowser. (bus system: without)Touch panel - WP 06T/WT - 2400163
Phoenix Contact 2400163 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -20 °C - 70 °C
- Ambient temperature (storage/transport)
- -30 °C - 80 °C
- Degree of protection
- NEMA 4X
- IP67 (front), IP20 (back)
- Permissible humidity (operation)
- 5 % - 95 % (front; non-condensing)
- 20 % - 85 % (non-condensing)
- Permissible humidity (storage/transport)
- 5 % - 95 % (front; non-condensing)
- 20 % - 85 % (non-condensing)
- Shock
- DIN EN 60068-2-27
- Vibration (operation)
- DIN EN 60068-2-6
Computer data
- Bus system
- without
- Interfaces
- 2x USB Host 2.0
- Mass storage
- Flash, 64 MB
- Network
- 1 x Ethernet (10/100 Mbps), RJ45
- Operating system
- Windows® CE 5.0
- Processor
- Arm9™, 184 MHz
- RAM
- 128 MB SDRAM
- User software
- MicroBrowser
Device supply
- Power consumption
- typ. 4.8 W
- Power supply unit
- 24 V DC ±20 %
- Typical current consumption
- 0.2 A
Dimensions
- Installation dimensions: width, height, depth
- 161 mm x 119 mm x 42 mm (Installation cutout)
- Outer dimensions: width, height, depth
- 195 mm x 153 mm x 5 mm (Dimensions of the front plate)
Display
- Backlighting
- LED
- Brightness
- 400 cd/m², typical (adjustable)
- Colors
- 65536 colors
- Display
- 14.5 cm/5.7" TFT active
- Display backlight MTBF
- 40000 h
- Readability in sunlight
- yes
- Screen resolution
- 320 x 240 Pixel(s) (QVGA)
- Touch technology
- Analog resistive (GFG), anti-reflective coating
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 15;
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- REACh SVHC
- Lead 7439-92-1
Standards and Regulations
- Shock
- DIN EN 60068-2-27
- Vibration (operation)
- DIN EN 60068-2-6
