Description

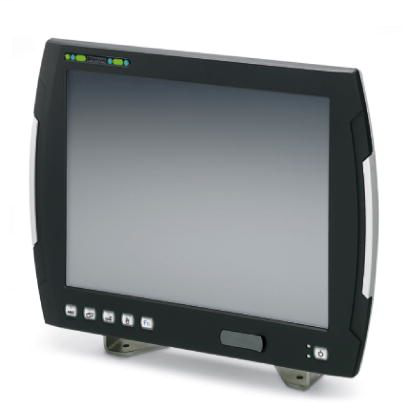

Configurable IPC in IP65 with touchscreen, 15" display, enclosed housing. Configurable: including mass storage and operating system.Panel PC 2400160
Phoenix Contact 2400160 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -15 °C - 55 °C (with mSATA SSD (MLC) WT)
- 0 °C - 55 °C (with mSATA SSD (MLC))
- Ambient temperature (storage/transport)
- -30 °C - 60 °C
- Degree of protection
- IP65
- Permissible humidity (operation)
- 10 % - 85 % (non-condensing)
- Permissible humidity (storage/transport)
- 10 % - 85 % (non-condensing)
- Shock
- DIN EN 60068-2-27
- Vibration (operation)
- DIN EN 60068-2-6
Computer data
- Audio
- integrated speakers
- Cooling
- passive
- Interfaces
- 4x USB 2.0 (1x USB on the front with IP65 cover (can be deactivated via software))
- 1x COM (RS-232)
- Mass storage
- mSATA SSD (MLC) WT, 32 GB
- mSATA SSD (MLC) WT, 64 GB
- mSATA SSD (MLC) WT, 16 GB
- mSATA SSD (MLC), 128 GB
- mSATA SSD (MLC) WT, 128 GB
- Network
- 2x Ethernet (10/100/1000 Mbps), RJ45
- Operating system
- without operating system
- Windows® 10 IoT Enterprise
- Windows® Embedded Standard 7 (32-Bit), Multi-language
- Windows® Embedded Standard 7 SP1 (64-bit), Multi-language
- Windows® 7 Ultimate (32-bit), Multi-language
- Windows® 7 Ultimate SP1 (64 bit), Multi-language
- Optical drive
- without drive
- Optional interfaces
- WLAN Mini PCIe
- none
- Processor
- Intel® Atom™ N2600 1.6 GHz
- Intel® Atom™ E3827 1.75 GHz
- RAM
- 4 GB DDR3 SODIMM
- 8 GB DDR3
- Service life of battery
- 3 - 5 years (typ.)
- Slots
- without slots
- User software
- without user software
Device supply
- Power supply unit
- 24 V DC (10 - 36 V DC)
Dimensions
- External dimension, depth
- 66 mm
- External dimension, height
- 305 mm
- External dimension, width
- 400 mm
Display
- Backlighting
- LED
- Colors
- 16.2 million colors
- Display
- 38.1 cm/15" TFT
- Display backlight MTBF
- > 50000 h
- Screen resolution
- 1024 x 768 Pixel(s) (XGA)
- Touch technology
- analog resistive (polyester)
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Standards and Regulations
- Shock
- DIN EN 60068-2-27
- Vibration (operation)
- DIN EN 60068-2-6
