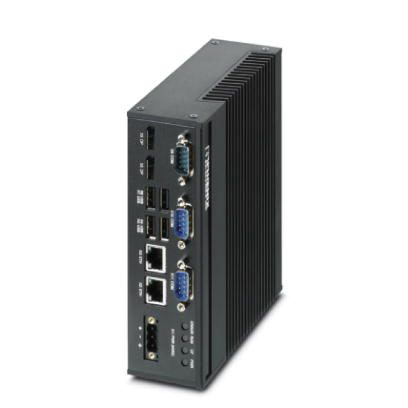

Phoenix Contact 2400129
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Protocol converter for up to 4000 PV (process variables) for converting serial communication to Ethernet-based communication for modernizing or combining networks.Protocol converter 2400129
Phoenix Contact 2400129 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -20 °C - 50 °C
- Ambient temperature (storage/transport)
- -40 °C - 70 °C
- Degree of protection
- IP20
- Permissible humidity (operation)
- 5 % - 95 % (non-condensing)
- Permissible humidity (storage/transport)
- 5 % - 95 % (non-condensing)
- Shock
- 15g, 11 ms in accordance with IEC 60068-2-27
- Vibration (operation)
- DIN EN 60068-2-6
Computer data
- Cooling
- passive
- Interfaces
- 2x COM (RS-232)
- 1x USB 3.0
- 3x USB 2.0
- 1x COM (RS-232/422/485)
- Mass storage
- 4 GB CFast® card
- Monitor output
- 2x DisplayPort
- Network
- 2x Ethernet (10/100/1000 Mbps), RJ45
- Operating systems
- Linux
- Optical drive
- without drive
- Processor
- Intel® Celeron® N2930 1.83 GHz/2.16 GHz
- RAM
- 2 GB DDR3 SODIMM
- Realtime clock
- Yes (battery-backed)
- Service life of battery
- 5 years (typical)
- Slots
- without slots
- Supported remote control protocols
- IEC 60870–5–104 Server, max. 4 Client
- IEC 60870–5–101 Balanced Mode
- Modbus TCP Master
- IEC 60870–5–101 Unbalanced Mode
- IEC 60870–5–104 Client
- Modbus RTU Master
Device supply
- Power consumption
- typical
- Power supply unit
- 24 V DC ±20 %
Display
- Backlighting
- without
- Display
- without display
- Screen resolution
- for without
- Touch technology
- without
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50
- For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Standards and Regulations
- Shock
- 15g, 11 ms in accordance with IEC 60068-2-27
- Vibration (operation)
- DIN EN 60068-2-6
