Phoenix Contact 2322728
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

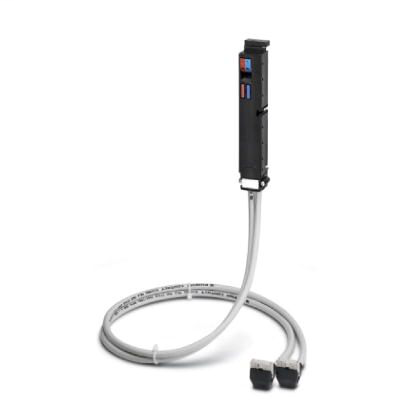

VIP VARIOFACE front adapter, with connected system cables for SMATIC S7-300, 2 x 8 channels can be connected, cable length: 5 mFront adapters - VIP-PA-FLK14/ 5,0M/S7 - 2322728
Phoenix Contact 2322728 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -20 °C - 50 °C
- Ambient temperature (storage/transport)
- -20 °C - 70 °C
- Degree of protection
- ≥ IP54 (Installation location)
- IP20
- Maximum altitude
- ≤ 2000 m
Cable
- Conductor construction: Number of litz wires:
- 7
- External diameter
- 6.4 mm
- Halogen-free cable
- No
- Length of cable
- 5 m
- Max. conductor resistance
- 0.16 Ω/m
- Shielding
- no
- Single wire, cross section
- 0.14 mm²
- Single wire, material
- Cu tin-plated
Connection data
- Connection method
- Plug connection
- Connection name
- Control side
- Note
- Can be plugged onto 20-pos. I/O modules
Connection data 2
- Connection in acc. with standard
- IEC 60603-13
- Connection method
- IDC/FLK socket strip
- Connection name
- Field level
- Number of connections
- 2
- Number of positions
- 14
- Pitch
- 2.54 mm
Connection data 3
- Conductor cross section AWG
- 24 - 14
- Conductor cross section flexible
- 0.2 mm² - 2.5 mm²
- Conductor cross section solid
- 0.2 mm² - 2.5 mm²
- Connection method
- Push-in connection
- Connection name
- Supply
- Stripping length
- 10 mm
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
Note
- Note
- Digital I/O cards Thanks to the existing wire bridge upon delivery, the input and output bytes are non-isolated.
- Analog I/O cards To avoid short-circuits, all wire bridges must be disconnected! No voltage supply may be supplied to the front adapter!
- Type of note
- Notes on operation
Standards and Regulations
- Connection in acc. with standard
- CUL
- Designation
- Air clearances and creepage distances
- Insulation
- Functional insulation
- Overvoltage category
- II
- Pollution degree
- 2
- Rated insulation voltage
- 63 V
- Rated surge voltage
- 0.6 kV
- Standards/regulations
- DIN EN 50178
Supported controller
- Controller
- SIEMENS S7-300 / ET 200 M
- suitable I/O card
- 6ES7 331-7KB02-0AB0
- 6ES7 332-5HB01-0AB0
- 6ES7 332-8TF01-0AB0
- 6ES7 352-1AH02-0AE0
- 6ES7 323-1BH01-0AA0
- 6ES7 321-1BH02-0AA0
- 6ES7 331-7TF01-0AB0
- 6ES7 322-1BH10-0AA0
- 6ES7 350-1AH03-0AE0
- 6ES7 338-4BC01-0AB0
- 6ES7 332-7ND02-0AB0
- 6ES7 355-0VH10-0AE0
- 6ES7 331-7HF01-0AB0
- 6ES7 354-1AH01-0AE0
- 6ES7 321-7BH01-0AB0
- 6ES7 335-7HG01-0AB0
- 6ES7 321-1BH50-0AA0
- 6ES7 321-1BH10-0AA0
- 6ES7 322-1BH01-0AA0
- 6ES7 355-1VH10-0AE0
- 6ES7 353-1AH01-0AE0
- 6ES7 332-5HD01-0AB0
- 6ES7 334-0CE01-0AA0
- 6ES7 331-7KF02-0AB0
- 6ES7 334-0KE00-0AB0
- 6ES7 322-8BF00-0AB0
- 6ES7 351-1AH01-0AE0
