Description

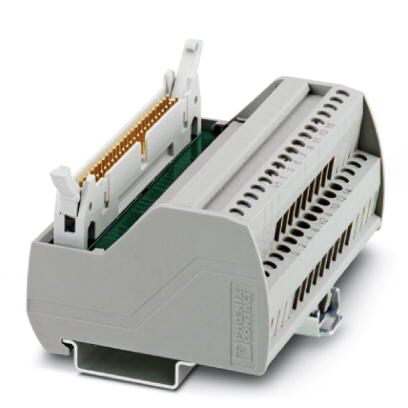

VARIOFACE termination board, to transmit max. 16 channels, only in connection with FLKM 50-PA-SLC 500 OUT/2 APassive module - VIP-2/SC/FLK50/16/SLC500 - 2322320
Phoenix Contact 2322320 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -20 °C - 50 °C
- Ambient temperature (storage/transport)
- -20 °C - 70 °C
Connection data
- Conductor cross section AWG
- 24 - 12
- Conductor cross section flexible
- 0.2 mm² - 2.5 mm²
- Conductor cross section solid
- 0.2 mm² - 4 mm²
- Connection in acc. with standard
- IEC / EN
- Connection method
- Screw connection
- Connection name
- Field level
- Screw thread
- M3
- Stripping length
- 8 mm
Connection data 2
- Connection method
- IDC/FLK pin strip
- Connection name
- Controller level
- Number of connections
- 1
- Number of positions
- 50
- Pitch
- 2.54 mm
Dimensions
- Depth
- 56 mm
- Height
- 65.5 mm
- Width
- 90.8 mm
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- REACh SVHC
- Lead 7439-92-1
Standards and Regulations
- Connection in acc. with standard
- CUL
- Flammability rating according to UL 94
- V0
- Overvoltage category
- II
- Pollution degree
- 2
- Standards/regulations
- IEC 60664
- DIN EN 50178
Supported controller
- Controller
- ALLEN-BRADLEY SLC 500
- suitable I/O card
- 1746 OW16
- 1746 OA16
