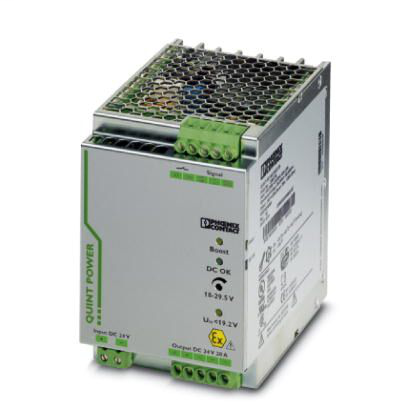

Phoenix Contact 2320568

Ambient conditions

• Ambient temperature (operation)
  • -25 °C - 70 °C (> 60 °C derating, 2.5 %/K, startup at -40°C type-tested)
• Ambient temperature (start-up type tested)
  • -40 °C
• Ambient temperature (storage/transport)
  • -40 °C - 85 °C
• Climatic class
  • 3K3 (in acc. with EN 60721)
• Degree of pollution
  • 2
• Degree of protection
  • IP20
• Max. permissible relative humidity (operation)
  • 100 % (at 25 °C, non-condensing)

Conformance/approvals

• Shipbuilding approval
  • DNV GL (EMC B)
• UL approvals
  • UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D (Hazardous Location)
  • UL/C-UL listed UL 508
  • UL/C-UL Recognized UL 60950-1

Connection data for signaling

• Conductor cross section AWG max.
  • 12
• Conductor cross section AWG min.
  • 24
• Conductor cross section flexible max.
  • 2.5 mm²
• Conductor cross section flexible min.
  • 0.2 mm²
• Conductor cross section solid max.
  • 2.5 mm²
• Conductor cross section solid min.
  • 0.2 mm²
• Screw thread
  • M3

Connection data, input

• Conductor cross section AWG max.
  • 6
• Conductor cross section AWG min.
  • 8
• Conductor cross section flexible max.
  • 16 mm²
• Conductor cross section flexible min.
  • 0.5 mm²
• Conductor cross section solid max.
  • 16 mm²
• Conductor cross section solid min.
  • 0.5 mm²
• Connection method
  • Screw connection
• Screw thread
  • M3
• Stripping length
  • 10 mm

Connection data, output

• Conductor cross section AWG max.
  • 10
• Conductor cross section AWG min.
  • 12
• Conductor cross section flexible max.
  • 4 mm²
• Conductor cross section flexible min.
  • 0.2 mm²
• Conductor cross section solid max.
  • 6 mm²
• Conductor cross section solid min.
  • 0.2 mm²
• Connection method
  • Screw connection
• Screw thread
  • M3
• Stripping length
  • 8 mm

Dimensions

• Depth
  • 125 mm
• Depth with alternative assembly
  • 85 mm
• Height
  • 130 mm
• Height with alternative assembly
  • 130 mm
• Installation distance left/right (active)
  • 15 mm / 15 mm (≤ 70 °C)
• Installation distance right/left
  • 0 mm / 0 mm (≤ 70 °C)
• Installation distance top/bottom
  • 50 mm / 50 mm (≤ 70 °C)
• Installation distance top/bottom (active)
  • 50 mm / 50 mm (≤ 70 °C)
• Width
  • 82 mm
• Width with alternative assembly
  • 122 mm

EMC data

• Comments
  • Criterion A
• Contact discharge
  • 8 kV (Test Level 4)
• Criterion A
  • Normal operating behavior within the specified limits.
• Criterion B
  • Temporary impairment to operational behavior that is corrected by the device itself.
• Discharge in air
  • 15 kV (Test Level 4)
• Electromagnetic compatibility
  • Conformance with EMC Directive 2014/30/EU
• Electromagnetic HF field
  • EN 61000-4-3
• Electrostatic discharge
  • EN 61000-4-2
• Fast transients (burst)
  • EN 61000-4-4
• Frequency range
  • 80 MHz - 1 GHz
  • 1 GHz - 2 GHz
  • 0.15 MHz - 80 MHz
  • 2 GHz - 3 GHz
• Input
  • 1 kV (Test Level 2 - symmetrical)
  • 2 kV (Test Level 3 - asymmetrical)
• I/O/S
  • asymmetrical
• Output
  • 1 kV (Test Level 2 - symmetrical)
  • 2 kV (Test Level 3 - asymmetrical)
• Signal
  • 1 kV (Test Level 2 - asymmetrical)
  • 2 kV (Test Level 4 - asymmetrical)
• Surge voltage load (surge)
  • EN 61000-4-5
• Test field strength
  • 10 V/m
• Voltage
  • 10 V (Test Level 3)

Environmental Product Compliance

• China RoHS
  • Environmentally Friendly Use Period = 25;
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
• REACh SVHC
  • Lead 7439-92-1

Input data

• Current consumption
  • 28 A (24 V, IBOOST)
• Extended input voltage range in operation
  • 14 V DC - 18 V DC (Derating)
• Input voltage range
  • 18 V DC - 32 V DC
• Inrush current
  • typ. 26 A
• Mains buffering time
  • typ. 10 ms (24 V DC)
• Nominal input voltage range
  • 24 V DC
• Protective circuit/component
  • Varistor
• Recommended breaker for input protection
  • 40 A - 50 A (Characteristics B, C, D, K)
• Type of protection
  • Transient surge protection

Output data

• Active current limitation
  • approx. 29 A
• Connection in parallel
  • Yes, for redundancy and increased capacity
• Connection in series
  • yes
• Control deviation
  • < 1 % (change in load, static 10 % - 90 %)
  • < 0.1 % (change in input voltage ±10 %)
  • < 2 % (change in load, dynamic 10 % - 90 %)
• Derating
  • 60 °C - 70 °C (2.5%/K)
• Feedback voltage resistance
  • 35 V DC
• Max. capacitive load
  • unlimited
• Maximum power dissipation in no-load condition
  • 2.2 W
• Nominal output current (IN)
  • 20 A (-25 °C - 60 °C)
• Nominal output voltage
  • 24 V DC ±1 %
• Peak switching voltages nominal load
  • < 10 mVPP (20 MHz)
• POWER BOOST (IBoost)
  • 25 A (-25°C - 40°C permanent, UOUT = 24 V DC )
• Power loss nominal load max.
  • 39 W
• Protection against overvoltage at the output (OVP)
  • < 35 V DC
• Residual ripple
  • < 20 mVPP
• Selective Fuse Breaking (ISFB)
  • 120 A (12 ms)
• Setting range of the output voltage (USet)
  • 18 V DC - 29.5 V DC (> 24 V DC, constant capacity restricted)

Standards

• EMC requirements for noise emission
  • EN 61000-6-4
  • EN 61000-6-3
• EMC requirements for noise immunity
  • EN 61000-6-1
  • EN 61000-6-2
• Rail applications
  • EN 50155
  • EN 50121-4
• Standard - Electrical safety
  • EN 60950-1/VDE 0805 (SELV)
• Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installations
  • EN 50178/VDE 0160 (PELV)
• Standard - Safe isolation
  • DIN VDE 0100-410
• Standard – Safety extra-low voltage
  • EN 60950-1 (SELV)
  • EN 60204 (PELV)
