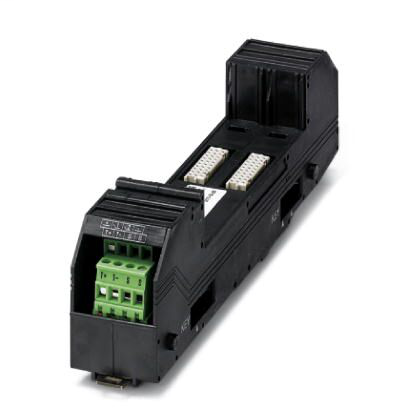

Phoenix Contact 2316145
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Base for fieldbus power supply plugs. Provides redundancy when 2 plugs are installed. Redundancy is maintained across multiple bases via internal power buses. Additional internal bus provides remote indication.Power distributor - FB-PS-BASE/EX - 2316145
Phoenix Contact 2316145 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -40 °C - 70 °C
- Ambient temperature (storage/transport)
- -40 °C - 85 °C
- Degree of protection
- IP20 (when D-FB-PS is installed)
- Permissible humidity (operation)
- 95 % (non-condensing)
Digital outputs
- Output name
- Alarm
Dimensions
- Depth
- 61.5 mm
- Height
- 202.5 mm
- Width
- 36 mm
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
- REACh SVHC
- Lead 7439-92-1
Interfaces
- Connection method
- Terminal block
- Inductance Li
- 17.6 mH (trunk and host)
- Interface
- Host system
- Interface 1
- Discrete wiring
- Max. output voltage Uo
- 30 V DC (trunk and host)
- Number of connections
- 4
- Torque
- 0.4 Nm - 0.6 Nm
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Power supply
- Conductor cross section AWG max.
- 12
- Conductor cross section AWG min.
- 30
- Conductor cross section flexible max.
- 2.50 mm²
- Conductor cross section flexible min.
- 0.20 mm²
- Conductor cross section solid max.
- 2.50 mm²
- Conductor cross section solid min.
- 0.20 mm²
Standards and Regulations
- ATEX
- Sira 11ATEX4216X; II 3 G Ex nA nC IIC T4 Gc
- Conformance
- CE-compliant
- CSA, USA/Canada
- Class I, Div. 2, Groups A, B, C, D; Ex nA nC IIC T4 Class I, Zone 2, AEx nA nC IIC T4
- Designation
- Standards/regulations
- Fieldbus Foundation
- FF-831
- IECEx
- IECEx SIR 11.0097X; Ex nA nC IIC T4 Gc
- Standards/regulations
- NE21
- Dry heat in acc. with IEC 61131-2
- Shock and vibration in acc. with EN 61131-2 and EN 50178
- Damp heat in acc. with IEC 61131-2
- IEC 61158-2
- EN 61326
- Ring wave noise immunity in acc. with IEC 61000-4-12
- Type of test
- Corrosive resistance in acc. to ANSI-ISA 71.04-1985 - Severity level G3
