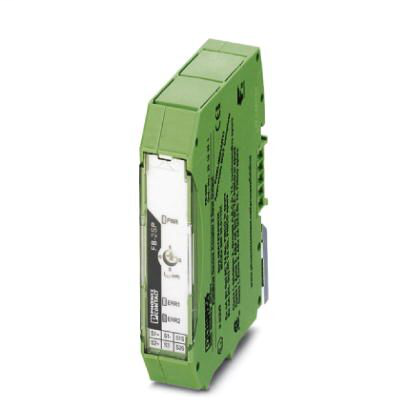

Phoenix Contact 2316051
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Device coupler for Foundation Fieldbus and PROFIBUS PA expansions with terminal connections for 2 spurs connected to fieldbus end devicesDevice coupler - FB-2SP - 2316051
Phoenix Contact 2316051 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -40 °C - 85 °C (depending on set rated current)
- Ambient temperature (storage/transport)
- -40 °C - 85 °C
- Degree of protection
- IP20
- Permissible humidity (operation)
- 10 % - 95 % (non-condensing)
Dimensions
- Depth
- 70.4 mm
- Height
- 89.7 mm
- Width
- 17.5 mm
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- REACh SVHC
- Lead 7439-92-1
Interfaces
- Conductor cross section AWG max.
- 12
- Conductor cross section AWG min.
- 24
- Conductor cross section flexible max.
- 2.5 mm²
- Conductor cross section flexible min.
- 0.2 mm²
- Conductor cross section solid max.
- 2.5 mm²
- Conductor cross section solid min.
- 0.2 mm²
- Connection method
- Pluggable COMBICON screw connection for each spur
- Inductance Li
- 4 µH
- Interface 1
- Foundation Fieldbus and PROFIBUS PA Segment
- Maximum output current
- 22 mA (each spur, adjustable via selector switch, -40 - 85°C)
- 33 mA (each spur, adjustable via selector switch, -40...80°C)
- 57 mA (each spur, adjustable via selector switch, -40...70°C)
- 45 mA (each spur, adjustable via selector switch, -40...75°C)
- Max. output voltage Uo
- Ui
- No. of ports
- 2
- Output current
- 35 mA (each spur, adjustable via selector switch, -40...75°C)
- 15 mA (each spur, adjustable via selector switch, -40 - 85°C)
- 25 mA (each spur, adjustable via selector switch, -40...80°C)
- 45 mA (each spur, adjustable via selector switch, -40...70°C)
- Output nominal voltage
- ≤ 32 V (each spur)
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Power supply
- Supply voltage range
- 10.3 V DC - 32 V DC (input on trunk line side)
- Typical current consumption
- 6 mA
Safety data
- ATEX
- Sira 08ATEX4303X: II 3(3)G Ex nA [Ic Gc] IIB T4 Gc, FISCO Ic spurs Ex nA [nL Gc] IIB T4 Gc, FNICO spurs
- CSA, USA/Canada
- Class I, Div. 2, Groups C, D Ex nA [nL] IIB T4, FNICO/Entity Class I, Zone 2, AEx nA [nL] IIB T4, FNICO/Entity
- Group
- IIB
- IECEx
- IECEx SIR 08.0110X: II 3(3)G Ex nA [Ic Gc] IIB T4 Gc, FISCO Ic spurs Ex nA [nL Gc] IIB T4 Gc, FNICO spurs
- Max. external capacitance Co
- 100 nF
- Max. external inductivity Lo
- 325 µH
- Max. output current Io
- 48 mA
- Max. output power Po
- 1.536 W
- Max. output voltage Uo
- Ui
Standards and Regulations
- ATEX
- Sira 08ATEX4303X: II 3(3)G Ex nA [Ic Gc] IIB T4 Gc, FISCO Ic spurs Ex nA [nL Gc] IIB T4 Gc, FNICO spurs
- Conformance
- CE-compliant, additionally EN 61326
- CSA, USA/Canada
- Class I, Div. 2, Groups C, D Ex nA [nL] IIB T4, FNICO/Entity Class I, Zone 2, AEx nA [nL] IIB T4, FNICO/Entity
- Designation
- Standards/regulations
- Fieldbus Foundation
- FF-846
- Group
- IIB
- IECEx
- IECEx SIR 08.0110X: II 3(3)G Ex nA [Ic Gc] IIB T4 Gc, FISCO Ic spurs Ex nA [nL Gc] IIB T4 Gc, FNICO spurs
- Shock
- 15g, 11 ms
- Standards/regulations
- Damp heat in acc. with IEC 61131-2
- IEC 61158-2
- Shock and vibration in acc. with EN 61131-2 and EN 50178
- IEC 60529, IEC 61158-2
- EN 61326, EN 60068-2-27, EN 60068-2-6
- Dry heat in acc. with IEC 61131-2
- Ring wave noise immunity in acc. with IEC 61000-4-12
- FF-846
- NE21
- Type of test
- Corrosive resistance in acc. to ANSI-ISA 71.04-1985 - Severity level G3
- Vibration (operation)
- 1g, 10 Hz - 150 Hz
