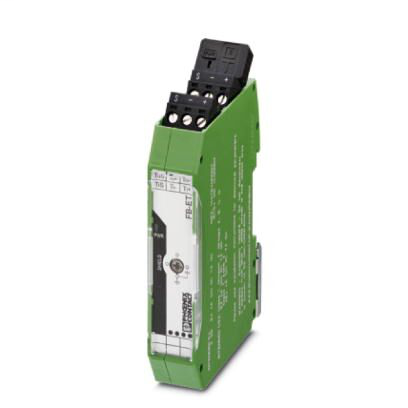

Phoenix Contact 2316048
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Trunk module for Foundation Fieldbus and PROFIBUS PA expansions with terminatorTrunk module - FB-ET - 2316048
Phoenix Contact 2316048 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -40 °C - 85 °C
- Ambient temperature (storage/transport)
- -40 °C - 85 °C
- Degree of protection
- IP20
- Permissible humidity (operation)
- 10 % - 95 % (non-condensing)
Dimensions
- Depth
- 70.4 mm
- Height
- 99.1 mm
- Width
- 17.5 mm
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
- REACh SVHC
- Lead 7439-92-1
Interfaces
- Conductor cross section AWG max.
- 12
- Conductor cross section AWG min.
- 24
- Conductor cross section flexible max.
- 2.5 mm²
- Conductor cross section flexible min.
- 0.2 mm²
- Conductor cross section solid max.
- 2.5 mm²
- Conductor cross section solid min.
- 0.2 mm²
- Connection method
- Pluggable COMBICON screw connection for each spur
- Interface 1
- Foundation Fieldbus and PROFIBUS PA Segment
- Surge protection
- Active if voltage exceeds 39 V (typ.) or 41 V (max.)
- Termination resistor
- 100 Ω, external removable plug included
- Voltage drop trunk line / outputs
- ≤ 0.2 V
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Power supply
- Max. current consumption
- 12 mA (with terminator)
- Nominal supply voltage
- 32 V DC (IIB)
- 24 V DC (IIC)
- Supply voltage range
- 24 V DC - 32 V DC
- Typical current consumption
- 8 mA (without termination resistor)
Safety data
- ATEX
- Sira 08ATEX4302X; II 3G Ex nA IIC T4 Gc II 3G Ex ic IIC T4 Gc, FISCO ic II 3G Ex nL IIC T4 Gc, FNICO
- CSA, USA/Canada
- Class I, Division 2, Groups A,B,C,D; Ex nA IIC T4 Class I, Zone 2, AEx nA IIC T4
- IECEx
- IECEx SIR 08.0109X; Ex nA IIC T4 Gc; Ex ic IIC T4 Gc, FISCO ic; Ex nL IIC T4 Gc, FNICO
- Input voltage Ui
- 17.5 V (for FB-2SP in a FNICO/FISCO ic system)
Standards and Regulations
- ATEX
- Sira 08ATEX4302X; II 3G Ex nA IIC T4 Gc II 3G Ex ic IIC T4 Gc, FISCO ic II 3G Ex nL IIC T4 Gc, FNICO
- Conformance
- CE-compliant, additionally EN 61326
- CSA, USA/Canada
- Class I, Division 2, Groups A,B,C,D; Ex nA IIC T4 Class I, Zone 2, AEx nA IIC T4
- Designation
- Standards/regulations
- Fieldbus Foundation
- FF-846
- IECEx
- IECEx SIR 08.0109X; Ex nA IIC T4 Gc; Ex ic IIC T4 Gc, FISCO ic; Ex nL IIC T4 Gc, FNICO
- Shock
- 15g, 11 ms
- Standards/regulations
- IEC 60529, IEC 61158-2
- NE21
- Damp heat in acc. with IEC 61131-2
- IEC 61158-2
- EN 61326, EN 60068-2-27, EN 60068-2-6
- Dry heat in acc. with IEC 61131-2
- Ring wave noise immunity in acc. with IEC 61000-4-12
- Shock and vibration in acc. with EN 61131-2 and EN 50178
- FF-846
- Type of test
- Corrosive resistance in acc. to ANSI-ISA 71.04-1985 - Severity level G3
- Vibration (operation)
- 1g, 10 Hz - 150 Hz
