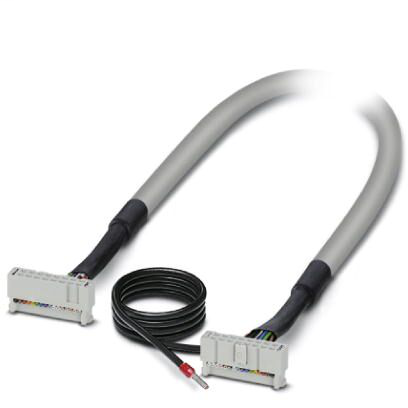

Phoenix Contact 2314477

Ambient conditions

• Ambient temperature (operation)
  • -10 °C - 70 °C (flexible installation)
  • -40 °C - 70 °C (fixed installation)
• Ambient temperature (storage/transport)
  • -40 °C - 80 °C
• Degree of protection
  • IP00
  • ≥ IP54 (Installation location)
• Maximum altitude
  • ≤ 2000 m

Connection data

• Connection in acc. with standard
  • IEC 60603-13
• Connection method
  • IDC/FLK socket strip
• Connection name
  • Field level
• Insertion/withdrawal cycles
  • > 50
• Note
  • The braided shield is routed to a separate cable end.
  • The separate cable end is approximately 0.5 m long (H05V-K 1 mm², black)
• Number of connections
  • 1
• Number of positions
  • 16
• Pitch
  • 2.54 mm

Connection data 2

• Connection in acc. with standard
  • IEC 60603-13
• Connection method
  • IDC/FLK socket strip
• Connection name
  • Controller level
• Insertion/withdrawal cycles
  • > 50
• Number of connections
  • 1
• Number of positions
  • 16
• Pitch
  • 2.54 mm

Environmental Product Compliance

• China RoHS
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
  • Environmentally Friendly Use Period = 50 years

Standards and Regulations

• Connection in acc. with standard
  • CUL
• Designation
  • Air clearances and creepage distances
• Flame resistance
  • CSA FT-1
  • VDE 0842, Part 332-1-2
  • IEC 60332-1-2
  • IEC 60332-3-22
  • UL VW-1
• Gasoline resistance
  • against occasional splashes
• Insulation
  • Functional insulation
• Overvoltage category
  • II
• Pollution degree
  • 2
• Rated insulation voltage
  • 63 V
• Rated surge voltage
  • 0.6 kV
• Resistance to oil
  • against occasional splashes
• Standards/regulations
  • DIN EN 50178

Supported controller

• Controller
  • universal
