Description

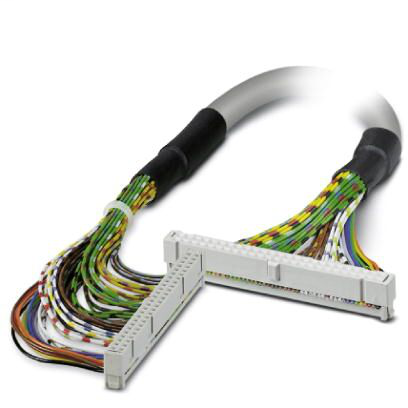

Assembled, halogen-free round cable; connection 1: IDC/FLK socket strip (1x 50-position); connection 2: IDC/FLK socket strip (1x 50-position); cable length: 6 mCable - CABLE-FLK50/0,14/HF/ 6,0M - 2314215
Phoenix Contact 2314215 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -40 °C - 70 °C (fixed installation)
- -10 °C - 70 °C (flexible installation)
- Ambient temperature (storage/transport)
- -40 °C - 80 °C
- Degree of protection
- ≥ IP54 (Installation location)
- IP00
- Maximum altitude
- ≤ 2000 m
Color code
- Connector 1 = connector 2 (optional) = wire color
- IDC/FLK50 (35) = IDC/FLK50 (35) = green-gray
- IDC/FLK50 (25) = IDC/FLK50 (25) = brown-blue
- IDC/FLK50 (13) = IDC/FLK50 (13) = white-red
- IDC/FLK50 (22) = IDC/FLK50 (22) = brown-orange
- IDC/FLK50 (49) = IDC/FLK50 (49) = gray-yellow
- IDC/FLK50 (18) = IDC/FLK50 (18) = white-violet
- IDC/FLK50 (28) = IDC/FLK50 (28) = brown-white
- IDC/FLK50 (37) = IDC/FLK50 (37) = yellow-black
- IDC/FLK50 (1) = IDC/FLK50 (1) = black
- IDC/FLK50 (20) = IDC/FLK50 (20) = brown-black
- IDC/FLK50 (3) = IDC/FLK50 (3) = red
- IDC/FLK50 (8) = IDC/FLK50 (8) = violet
- IDC/FLK50 (4) = IDC/FLK50 (4) = orange
- IDC/FLK50 (11) = IDC/FLK50 (11) = white-black
- IDC/FLK50 (17) = IDC/FLK50 (17) = white-blue
- IDC/FLK50 (39) = IDC/FLK50 (39) = yellow-red
- IDC/FLK50 (48) = IDC/FLK50 (48) = gray-orange
- IDC/FLK50 (44) = IDC/FLK50 (44) = yellow-white
- IDC/FLK50 (47) = IDC/FLK50 (47) = gray-red
- IDC/FLK50 (42) = IDC/FLK50 (42) = yellow-violet
- IDC/FLK50 (26) = IDC/FLK50 (26) = brown-violet
- IDC/FLK50 (36) = IDC/FLK50 (36) = green-white
- IDC/FLK50 (38) = IDC/FLK50 (38) = yellow-brown
- IDC/FLK50 (50) = IDC/FLK50 (50) = gray-green
- IDC/FLK50 (9) = IDC/FLK50 (9) = gray
- IDC/FLK50 (16) = IDC/FLK50 (16) = white-green
- IDC/FLK50 (31) = IDC/FLK50 (31) = green-red
- IDC/FLK50 (33) = IDC/FLK50 (33) = green-blue
- IDC/FLK50 (15) = IDC/FLK50 (15) = white-yellow
- IDC/FLK50 (6) = IDC/FLK50 (6) = green
- IDC/FLK50 (41) = IDC/FLK50 (41) = yellow-blue
- IDC/FLK50 (12) = IDC/FLK50 (12) = white-brown
- IDC/FLK50 (2) = IDC/FLK50 (2) = brown
- IDC/FLK50 (29) = IDC/FLK50 (29) = green-black
- IDC/FLK50 (46) = IDC/FLK50 (46) = gray-brown
- IDC/FLK50 (30) = IDC/FLK50 (30) = green-brown
- IDC/FLK50 (23) = IDC/FLK50 (23) = brown-yellow
- IDC/FLK50 (10) = IDC/FLK50 (10) = white
- IDC/FLK50 (21) = IDC/FLK50 (21) = brown-red
- IDC/FLK50 (27) = IDC/FLK50 (27) = brown-gray
- IDC/FLK50 (7) = IDC/FLK50 (7) = blue
- IDC/FLK50 (32) = IDC/FLK50 (32) = green-orange
- IDC/FLK50 (40) = IDC/FLK50 (40) = yellow-orange
- IDC/FLK50 (24) = IDC/FLK50 (24) = brown-green
- IDC/FLK50 (34) = IDC/FLK50 (34) = green-violet
- IDC/FLK50 (43) = IDC/FLK50 (43) = yellow-gray
- IDC/FLK50 (5) = IDC/FLK50 (5) = yellow
- IDC/FLK50 (14) = IDC/FLK50 (14) = white-orange
- IDC/FLK50 (45) = IDC/FLK50 (45) = gray-black
- IDC/FLK50 (19) = IDC/FLK50 (19) = white-gray
Connection data
- Connection in acc. with standard
- IEC 60603-13
- Connection method
- IDC/FLK socket strip
- Connection name
- Field level
- Insertion/withdrawal cycles
- > 50
- Number of connections
- 1
- Number of positions
- 50
- Pitch
- 2.54 mm
Connection data 2
- Connection in acc. with standard
- IEC 60603-13
- Connection method
- IDC/FLK socket strip
- Connection name
- Controller level
- Insertion/withdrawal cycles
- > 50
- Number of connections
- 1
- Number of positions
- 50
- Pitch
- 2.54 mm
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
Standards and Regulations
- Designation
- Air clearances and creepage distances
- Flame resistance
- VDE 0842, Part 332-1-2
- IEC 60332-3-22
- IEC 60332-1-2
- Gasoline resistance
- against occasional splashes
- Insulation
- Functional insulation
- Overvoltage category
- II
- Pollution degree
- 2
- Rated insulation voltage
- 63 V
- Rated surge voltage
- 0.6 kV
- Resistance to oil
- against occasional splashes
- Standards/regulations
- DIN EN 50178
Supported controller
- Controller
- ALLEN-BRADLEY PLC 5
- HONEYWELL Experion PKS C200
- SIEMENS S7-300 / ET 200 M
- Schneider Electric Modicon TSX QUANTUM
- ALLEN-BRADLEY ControlLogix
- SIEMENS S7-400
- ALLEN-BRADLEY SLC 500
- suitable I/O card
- CPU 313C-2PtP
- ATI 030
- 1756-IB32
- 1771 IBN
- 1756-HSC
- 6ES7 331-7NF10-0AB0
- DDM 390
- TC-ODD 321
- TC-IDK 161
- 6ES7 431-0HH0-0AB0
- 6ES7 431-7QH00-0AB0
- ACO 020
- CPU 314C-2PtP
- 6ES7 421-1BL01-0AA0
- 1756-M02AE
- CPU 313C
- 1771 OBN
- 1756-IH16I
- DAI 340
- 1756-IF16
- 6ES7 322-1BL00-0AA0
- 6ES7 431-1KF00-0AB0
- 6ES7 422-7BL00-0AB0
- EHC 202
- 6ES7 431-1KF10-0AB0
- ACO 130
- 1746 OA16
- 6ES7 350-2AH01-0AE0
- TC-IDJ 161
- DDO 353
- DDI 353
- 6ES7 331-1KF01-0AB0
- 6ES7 323-1BL00-0AA0
- CPU 313C-2DP
- 6ES7 332-5HF00-0AB0
- DAI 440
- 6ES7 421-7DH00-0AA0
- 1756-IF8
- TC-IDD 321
- 6ES7 357-4AH01-0AE0
- 1756-IB16D
- ACI 040
- DAI 353
- ARI 030
- TC-IDX 161
- 6ES7 422-1BL00-0AA0
- 6ES7 331-7PF11-0AB0
- 1756-IA16I
- 6ES7 331-7NF00-0AB0
- 6ES7 432-1HF00-0AB0
- AVI 030
- DDI 853
- 6ES7 431-7KF00-0AB0
- EHC 105
- DAI 453
- AVO 020
- DDI 841
- 6ES7 431-7KF10-0AB0
- TC-IAH 161
- ACI 030
- CPU 314C-2DP
- 6ES7 421-7BH01-0AB0
- 1756-IB16I
- 6ES7 321-1BL00-0AA0
- 6ES7 331-7PF01-0AB0
- 1746 OW16
- 6ES7 431-1KF20-0AB0
- 1756-OB32
