Description

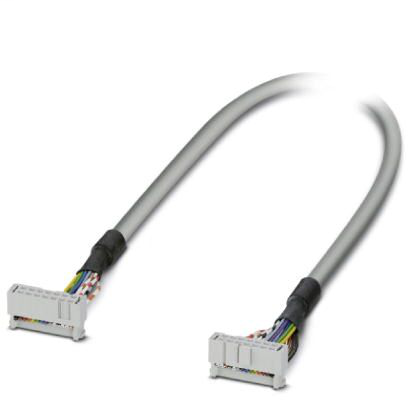

Assembled, halogen-free round cable; connection 1: IDC/FLK socket strip (1x 14-position); connection 2: IDC/FLK socket strip (1x 14-position); cable length: 10 mCable - FLK 14/EZ-DR/HF/1000/KONFEK - 2314037
Phoenix Contact 2314037 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -40 °C - 70 °C (fixed installation)
- -10 °C - 70 °C (flexible installation)
- Ambient temperature (storage/transport)
- -40 °C - 80 °C
- Degree of protection
- ≥ IP54 (Installation location)
- IP00
- Maximum altitude
- ≤ 2000 m
Color code
- Connector 1 = connector 2 (optional) = wire color
- IDC/FLK14 (8) = IDC/FLK14 (8) = violet
- IDC/FLK14 (13) = IDC/FLK14 (13) = white-red
- IDC/FLK14 (1) = IDC/FLK14 (1) = black
- IDC/FLK14 (3) = IDC/FLK14 (3) = red
- IDC/FLK14 (5) = IDC/FLK14 (5) = yellow
- IDC/FLK14 (2) = IDC/FLK14 (2) = brown
- IDC/FLK14 (9) = IDC/FLK14 (9) = gray
- IDC/FLK14 (12) = IDC/FLK14 (12) = white-brown
- IDC/FLK14 (4) = IDC/FLK14 (4) = orange
- IDC/FLK14 (7) = IDC/FLK14 (7) = blue
- IDC/FLK14 (14) = IDC/FLK14 (14) = white-orange
- IDC/FLK14 (10) = IDC/FLK14 (10) = white
- IDC/FLK14 (11) = IDC/FLK14 (11) = white-black
- IDC/FLK14 (6) = IDC/FLK14 (6) = green
Connection data
- Connection in acc. with standard
- IEC 60603-13
- Connection method
- IDC/FLK socket strip
- Connection name
- Field level
- Insertion/withdrawal cycles
- > 50
- Number of connections
- 1
- Number of positions
- 14
- Pitch
- 2.54 mm
Connection data 2
- Connection in acc. with standard
- IEC 60603-13
- Connection method
- IDC/FLK socket strip
- Connection name
- Controller level
- Insertion/withdrawal cycles
- > 50
- Number of connections
- 1
- Number of positions
- 14
- Pitch
- 2.54 mm
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
Standards and Regulations
- Flame resistance
- IEC 60332-1-2
- IEC 60332-3-22
- VDE 0842, Part 332-1-2
- Gasoline resistance
- against occasional splashes
- Insulation
- Functional insulation
- Overvoltage category
- II
- Pollution degree
- 2
- Rated insulation voltage
- 63 V
- Rated surge voltage
- 0.6 kV
- Resistance to oil
- against occasional splashes
- Standards/regulations
- DIN EN 50178
Supported controller
- Controller
- ALLEN-BRADLEY ControlLogix
- Schneider Electric Modicon TSX QUANTUM
- SIEMENS S7-1500
- SIEMENS S7-300 / ET 200 M
- HONEYWELL Experion PKS C200
- suitable I/O card
- 1756-IB16
- 6ES7 332-5HB01-0AB0
- 6ES7 522-1BH01-0AB0
- 6ES7 332-7ND02-0AB0
- 6ES7 331-7NF00-0AB0
- 6ES7 522-1BL01-0AB0
- DDI 853
- DDO 353
- 6ES7 351-1AH01-0AE0
- 6ES7 531-7NF00-0AB0
- 1756-IN16
- 6ES7 334-0CE01-0AA0
- 6ES7 331-7PF01-0AB0
- 1756-OB16E
- 6ES7 332-5HD01-0AB0
- 6ES7 321-1BH50-0AA0
- 6ES7 322-1BL00-0AA0
- 1756-IT6I
- 1756-PLS
- 1756-OF8
- 6ES7 323-1BH01-0AA0
- 6ES7 321-7BH01-0AB0
- 6ES7 353-1AH01-0AE0
- 6ES7 521-1BH00-0AB0
- CPU 314C-2DP
- 6ES7 357-4AH01-0AE0
- TC-IAH 061
- 1756-OF6CI
- TC-OAV 081
- TC-IXR 061
- 6ES7 531-7KF00-0AB0
- TC-OAH 061
- TC-OAV 061
- 6ES7 531-7PF00-0AB0
- 1756-OF4
- 1756-IC16
- 6ES7 532-5ND00-0AB0
- DDI 353
- 6ES7 331-7KF02-0AB0
- 6ES7 352-1AH02-0AE0
- 6ES7 521-1BL00-0AB0
- 6ES7 334-0KE00-0AB0
- CPU 313C
- 6ES7 355-1VH10-0AE0
- 6ES7 321-1BH02-0AA0
- 6ES7 322-1BH10-0AA0
- 6ES7 350-2AH01-0AE0
- 6ES7 354-1AH01-0AE0
- 6ES7 322-1BH01-0AA0
- 6ES7 531-7NF10-0AB0
- 6ES7 331-7PF11-0AB0
- 1756-IA8D
- 6ES7 522-1BH00-0AB0
- TC-IDX 081
- 1756-IR6I
- 6ES7 323-1BL00-0AA0
- 6ES7 331-7KB02-0AB0
- 6ES7 350-1AH03-0AE0
- 6ES7 331-7HF01-0AB0
- TC-IXL 061
- CPU 313C-2DP
- 6ES7 532-5HD00-0AB0
- TC-IDA 161
- 6ES7 321-1BH10-0AA0
- 6ES7 322-8BF00-0AB0
- 6ES7 321-1BL00-0AA0
- 6ES7 338-4BC01-0AB0
- 6ES7 355-0VH10-0AE0
- CPU 314C-2PtP
- 6ES7 521-1BH50-0AA0
- 6ES7 532-5HF00-0AB0
- CPU 313C-2PtP
- 6ES7 522-1BL00-0AB0
- 6ES7 335-7HG01-0AB0
- DAI 453
- CPU 312C
- 1756-IA16
