Phoenix Contact 2314011
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

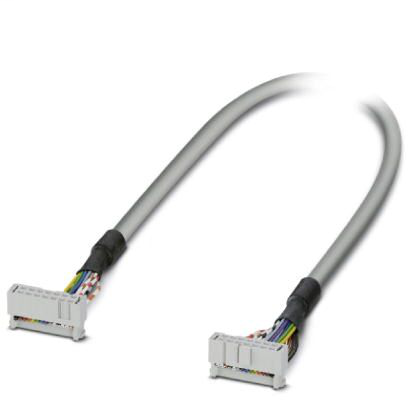

Assembled, halogen-free round cable; connection 1: IDC/FLK socket strip (1x 14-position); connection 2: IDC/FLK socket strip (1x 14-position); cable length: 7 mCable - FLK 14/EZ-DR/HF/ 700/KONFEK - 2314011
Phoenix Contact 2314011 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -40 °C - 70 °C (fixed installation)
- -10 °C - 70 °C (flexible installation)
- Ambient temperature (storage/transport)
- -40 °C - 80 °C
- Degree of protection
- IP00
- ≥ IP54 (Installation location)
- Maximum altitude
- ≤ 2000 m
Color code
- Connector 1 = connector 2 (optional) = wire color
- IDC/FLK14 (12) = IDC/FLK14 (12) = white-brown
- IDC/FLK14 (1) = IDC/FLK14 (1) = black
- IDC/FLK14 (6) = IDC/FLK14 (6) = green
- IDC/FLK14 (5) = IDC/FLK14 (5) = yellow
- IDC/FLK14 (11) = IDC/FLK14 (11) = white-black
- IDC/FLK14 (7) = IDC/FLK14 (7) = blue
- IDC/FLK14 (13) = IDC/FLK14 (13) = white-red
- IDC/FLK14 (8) = IDC/FLK14 (8) = violet
- IDC/FLK14 (4) = IDC/FLK14 (4) = orange
- IDC/FLK14 (9) = IDC/FLK14 (9) = gray
- IDC/FLK14 (3) = IDC/FLK14 (3) = red
- IDC/FLK14 (10) = IDC/FLK14 (10) = white
- IDC/FLK14 (2) = IDC/FLK14 (2) = brown
- IDC/FLK14 (14) = IDC/FLK14 (14) = white-orange
Connection data
- Connection in acc. with standard
- IEC 60603-13
- Connection method
- IDC/FLK socket strip
- Connection name
- Field level
- Insertion/withdrawal cycles
- > 50
- Number of connections
- 1
- Number of positions
- 14
- Pitch
- 2.54 mm
Connection data 2
- Connection in acc. with standard
- IEC 60603-13
- Connection method
- IDC/FLK socket strip
- Connection name
- Controller level
- Insertion/withdrawal cycles
- > 50
- Number of connections
- 1
- Number of positions
- 14
- Pitch
- 2.54 mm
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
Standards and Regulations
- Flame resistance
- IEC 60332-1-2
- VDE 0842, Part 332-1-2
- IEC 60332-3-22
- Gasoline resistance
- against occasional splashes
- Insulation
- Functional insulation
- Overvoltage category
- II
- Pollution degree
- 2
- Rated insulation voltage
- 63 V
- Rated surge voltage
- 0.6 kV
- Resistance to oil
- against occasional splashes
- Standards/regulations
- DIN EN 50178
Supported controller
- Controller
- HONEYWELL Experion PKS C200
- Schneider Electric Modicon TSX QUANTUM
- ALLEN-BRADLEY ControlLogix
- SIEMENS S7-1500
- SIEMENS S7-300 / ET 200 M
- suitable I/O card
- CPU 312C
- 1756-IN16
- TC-OAV 081
- CPU 313C-2PtP
- 6ES7 332-5HB01-0AB0
- 6ES7 331-7HF01-0AB0
- 6ES7 521-1BH00-0AB0
- 6ES7 350-2AH01-0AE0
- 6ES7 355-0VH10-0AE0
- TC-IXR 061
- 6ES7 331-7NF00-0AB0
- 6ES7 522-1BL00-0AB0
- 6ES7 321-1BH02-0AA0
- 6ES7 522-1BH01-0AB0
- 6ES7 331-7PF01-0AB0
- CPU 313C
- 6ES7 321-1BH10-0AA0
- 6ES7 355-1VH10-0AE0
- 6ES7 531-7NF00-0AB0
- 6ES7 323-1BL00-0AA0
- 6ES7 521-1BH50-0AA0
- 6ES7 531-7KF00-0AB0
- 6ES7 322-1BH01-0AA0
- 6ES7 321-7BH01-0AB0
- TC-OAH 061
- 6ES7 351-1AH01-0AE0
- 6ES7 331-7PF11-0AB0
- 1756-OF8
- 1756-IC16
- 1756-OF6CI
- 6ES7 521-1BL00-0AB0
- 6ES7 323-1BH01-0AA0
- TC-IDA 161
- 6ES7 532-5HF00-0AB0
- DAI 453
- 6ES7 321-1BH50-0AA0
- 1756-IB16
- 6ES7 532-5HD00-0AB0
- 1756-PLS
- 6ES7 332-5HD01-0AB0
- CPU 313C-2DP
- 6ES7 322-1BH10-0AA0
- DDI 853
- 1756-IR6I
- 1756-OF4
- 6ES7 531-7PF00-0AB0
- 6ES7 352-1AH02-0AE0
- 6ES7 332-7ND02-0AB0
- 1756-IT6I
- 6ES7 334-0KE00-0AB0
- 6ES7 331-7KF02-0AB0
- 6ES7 522-1BH00-0AB0
- 6ES7 353-1AH01-0AE0
- 6ES7 334-0CE01-0AA0
- TC-OAV 061
- TC-IAH 061
- 6ES7 350-1AH03-0AE0
- 1756-IA16
- TC-IXL 061
- 6ES7 522-1BL01-0AB0
- 6ES7 322-1BL00-0AA0
- TC-IDX 081
- 6ES7 331-7KB02-0AB0
- 1756-IA8D
- 6ES7 335-7HG01-0AB0
- 6ES7 338-4BC01-0AB0
- DDI 353
- CPU 314C-2DP
- 1756-OB16E
- CPU 314C-2PtP
- 6ES7 531-7NF10-0AB0
- 6ES7 321-1BL00-0AA0
- DDO 353
- 6ES7 357-4AH01-0AE0
- 6ES7 322-8BF00-0AB0
- 6ES7 354-1AH01-0AE0
- 6ES7 532-5ND00-0AB0
