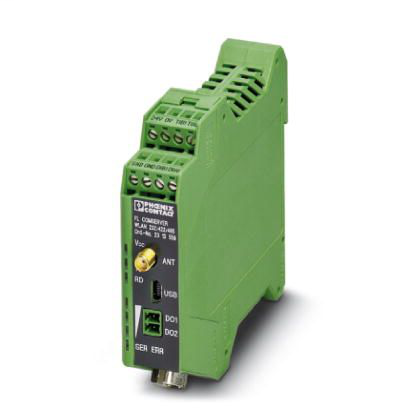

Phoenix Contact 2313559
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
FL COMSERVER WLAN..., to convert a serial RS-232/422/485 or USB interface to 54 Mbps WLAN Ethernet, supports TCP, UDP applications, incl. CD-ROM with Com Port Redirector Software and user documentation (PDF).Interface converters 2313559
Phoenix Contact 2313559 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Altitude
- 5000 m (For restrictions see manufacturer's declaration)
- Ambient temperature (operation)
- -25 °C - 60 °C
- Ambient temperature (storage/transport)
- -40 °C - 85 °C
- Degree of protection
- IP20
- Noise immunity
- EN 61000-6-2:2005
- Permissible humidity (operation)
- 10 % - 95 % (non-condensing)
- Permissible humidity (storage/transport)
- 5 % - 95 % (non-condensing)
Dimensions
- Depth
- 121 mm
- Height
- 99 mm
- Width
- 22.5 mm
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
- Environmentally Friendly Use Period = 50
- REACh SVHC
- Lead 7439-92-1
Function
- Management
- With configuration software via USB and serial interface
- Status and diagnostic indicators
- LEDs: UL (logic voltage), TD + RD (data activity serial), 4-level bar graph (received wireless power), SER ERR (serial errors)
Power supply
- Nominal supply voltage
- 24 V DC ±20 % (as an alternative or redundant, via backplane bus contact and system current supply)
- Supply voltage range
- 10 V DC - 30 V DC (via pluggable COMBICON screw terminal block)
- 19 V AC - 29 V AC (via pluggable COMBICON screw terminal block)
- Typical current consumption
- ≤ 100 mA (24 V DC)
Serial interface
- Connection method
- Plug-in/screw connection via COMBICON
- Mini-USB B, socket
- D-SUB 9 plug
- Plug-in/screw connection via COMBICON
- Data flow control/protocols
- Automatic control
- Software handshake, Xon/Xoff or hardware handshake RTS/CTS
- Automatic control
- File format/coding
- Serial asynchronous UART/NRZ, 7/8 data, 1/2 stop, 1 parity, 10/11-bit character length
- Serial asynchronous UART/NRZ, 7/8 data, 1/2 stop, 1 parity, 10/11-bit character length
- Serial asynchronous UART/NRZ, 7/8 data, 1/2 stop, 1 parity, 10/11-bit character length
- Interface
- RS-232
- RS-422
- RS-485
- USB
- Interface 1
- V.24 (RS-232) interface in acc. with ITU-T V.28, EIA/TIA-232, DIN 66259-1
- Interface 2
- RS-422 interface in acc. with ITU-T V.11, EIA/TIA-422, DIN 66348-1
- Interface 3
- RS-485 interface, in acc. with EIA/TIA-485, DIN 66259-4/RS-485 2-wire
- Interface 4
- USB interface
- Serial transmission speed
- 0.3; 1.2; 2.4; 4.8; 7.2; 9.6; 19.2; 31.25; 38.4; 57.6; 75; 93.75; 115.2 kbps
- 0.3; 1.2; 2.4; 4.8; 7.2; 9.6; 19.2; 31.25; 38.4; 57.6; 75; 93.75; 115.2; 136; 187.5 kbps
- 0.3; 1.2; 2.4; 4.8; 7.2; 9.6; 19.2; 31.25; 38.4; 57.6; 75; 93.75; 115.2; 136; 187.5 kbps
- Termination resistor
- 180 Ω
- 180 Ω
- 390 Ω
- 390 Ω (Can be connected)
- 390 Ω (Can be connected)
- 390 Ω
- Transmission length
- ≤ 1200 m
Standards and Regulations
- Conformance
- CE-compliant
- Electromagnetic compatibility
- Conformance with EMC Directive 2014/30/EU
- FCC
- Part 15, RSS 210
- Noise emission
- EN 61000-6-4
- Noise immunity
- EN 61000-6-2:2005
- Noxious gas test
- ISA-S71.04-1985 G3 Harsh Group A
- UL, USA/Canada
- 508 Listed
Wireless interface
- Antenna
- External
- Configuration
- USB, serially with configuration software
- Connection method
- SMA socket
- Data rate
- ≤ 54 Mbps
- Frequency range
- 2.402 GHz - 2.48 GHz (ISM bandwidth)
- Interface description
- WLAN as per IEEE 802.11 b/g
- Minimum receiver sensitivity
- -85 dBm
- Operating mode
- Infrastructure mode, ad-hoc mode
- Protocols supported
- TCP/IP, UDP
- Security
- 802.11i, WPA PSK (preshared key), WPA2 PSK, AES, WEP 64 Bit/128 Bit, TKIP
- Transmit capacity, maximum
- 20 dBm (can be set via software)
- Transmit capacity, minimum
- -28 dBm (can be set via software)
