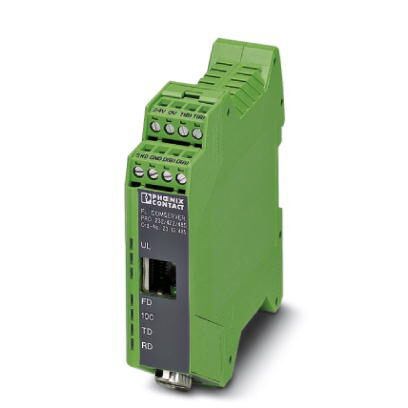

Phoenix Contact 2313465

Ambient conditions

• Altitude
  • ≤ 5000 m (For restrictions, see the manufacturer's declaration for altitude operation)
• Ambient temperature (operation)
  • -20 °C - 60 °C (With UL approval)
  • -25 °C - 60 °C
• Ambient temperature (storage/transport)
  • -25 °C - 70 °C
• Degree of protection
  • IP20
• Noise immunity
  • EN 61000-6-2:2005
• Permissible humidity (operation)
  • 10 % - 95 % (non-condensing)
• Permissible humidity (storage/transport)
  • 5 % - 95 % (non-condensing)

Conformance/approvals

• Additional text
  • Please follow the special installation instructions in the documentation!
• Designation
  • Corrosive gas test
  • EAC
  • ATEX
  • UL, Canada
  • UL, USA/Canada
  • UL, USA
  • CE
• Identification
  • Class I, Div. 2, Groups A, B, C, D
  • ISA-S71.04-1985 G3 Harsh Group A
  • Class I, Zone 2, Ex nA IIC T5 Gc X
  • 508 Listed
  • CE-compliant
  • EAC
  • Class I, Zone 2, AEx nA IIC T5
  • II 3G Ex nA IIC T4 Gc X

Dimensions

• Depth
  • 116 mm
• Height
  • 99 mm
• Width
  • 22.5 mm

Environmental Product Compliance

• China RoHS
  • Environmentally Friendly Use Period = 50 years
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
• REACh SVHC
  • Lead 7439-92-1

Function

• Management
  • SNMP v1/v2
  • Web-based management, SNMP, serial emergency access
  • Web-based management
• Status and diagnostic indicators
  • LEDs: UL (logic voltage), TD + RD (data activity serial), FD (full duplex), 100 (100 Mbps mode), Link (Ethernet), Activity (Ethernet), ERR (error)
• Web-based management
  • yes

Interfaces

• Auxiliary protocols
  • ARP, DHCP, BOOTP, SNMP, RIP, RARP, HTTP, TFTP, ICMP
• Connection method
  • D-SUB 9 plug
  • Plug-in/screw connection via COMBICON
  • RJ45 socket, shielded
• Data flow control/protocols
  • Automatic control
  • Software handshake, Xon/Xoff or hardware handshake RTS/CTS
• File format/coding
  • UART/NRZ: 7/8 Bit Data, 1/2 Bit Stopp, None/Even/Odd Parity
• Interface
  • RS-485
  • Ethernet
  • RS-232
  • RS-422
• Interface 1
  • Ethernet interface, 10/100Base-T(X) in accordance with IEEE 802.3
• Interface 2
  • V.24 (RS-232) interface in acc. with ITU-T V.28, EIA/TIA-232, DIN 66259-1
• Interface 3
  • RS-422 interface in acc. with ITU-T V.11, EIA/TIA-422, DIN 66348-1
• Interface 4
  • RS-485 interface, in acc. with EIA/TIA-485, DIN 66259-4/RS-485 2-wire
• No. of ports
  • 1
• Pin assignment
  • DTE/DCE switchover via web-based management
• Protocols supported
  • TCP/IP, UDP
• Serial transmission speed
  • 10/100 Mbps, auto negotiation
  • 0.3; 0.6; 1.2; 2.4; 4.8; 7.2; 9.6; 19.2; 38.4; 57.6; 115.2; 187.5; 230.4; 500; 1000 kbps
  • 0.3; 0.6; 1.2; 2.4; 4.8; 7.2; 9.6; 19.2; 38.4; 57.6; 115.2; 187.5; 230.4 kbps
• Termination resistor
  • 390 Ω (configurable)
  • 180 Ω
  • 390 Ω
• Transmission length
  • ≤ 100 m (shielded twisted pair)
  • ≤ 1200 m

Note

• Utilization restriction
  • EMC: class A product, see manufacturer's declaration in the download area

Power supply

• Nominal supply voltage
  • 24 V DC ±5 % (as an alternative or redundant, via backplane bus contact and system current supply)
  • 24 V AC/DC ±20 % (via pluggable COMBICON screw terminal block)
• Supply voltage range
  • 22.8 V DC - 25.2 V DC (as an alternative or redundant, via backplane bus contact and system current supply)
  • 19.2 V AC/DC - 28.8 V AC/DC (via pluggable COMBICON screw terminal block)
• Typical current consumption
  • 100 mA (24 V DC)

Standards and Regulations

• Electromagnetic compatibility
  • Conformance with EMC Directive 2014/30/EU
• Free from substances that could impair the application of coating
  • according to P-VW 3.10.7 57 65 0 VW-AUDI-Seat central standard
• Noise emission
  • EN 61000-6-4
• Noise immunity
  • EN 61000-6-2:2005
• Standards/regulations
  • EN 50121-4
• Test result
  • 15g, 11 ms period, half-sine shock pulse
  • 5g, 10...150 Hz, 2.5 h, in XYZ direction
  • 1 m
  • 30g, 11 ms period, half-sine shock pulse
• Type of test
  • Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6
  • Free fall in acc. with IEC 60068-2-32
  • Shock in acc. with EN 60068-2-27/IEC 60068-2-27
